C-ummins I-NLINE 6 Data Link Adapter with C-ummins Insite v8.7 Software for C-ummins

C-ummins I-NLINE 6 Data Link Adapter designed for C-ummins diesel engine diagnosis.

If you need it, please contact sales(Support Online or Whatsapp ).

C-ummins Inline 6 Data Link Adapter Overview:

1. Software Version: C-ummins Insite V8.7 crack version

2. Support Multi-languages: English(United States), Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Chinese(Simplified),

3. Update Method: By CD

4. Note:

• The v8.7 software only can fit Win7 Operating System, cannot fit Win XP System;
• Please don't change the time zone of your laptop easily.

Get C-ummins I-NLINE 6 Data Link Adapter for 5 Reasons:

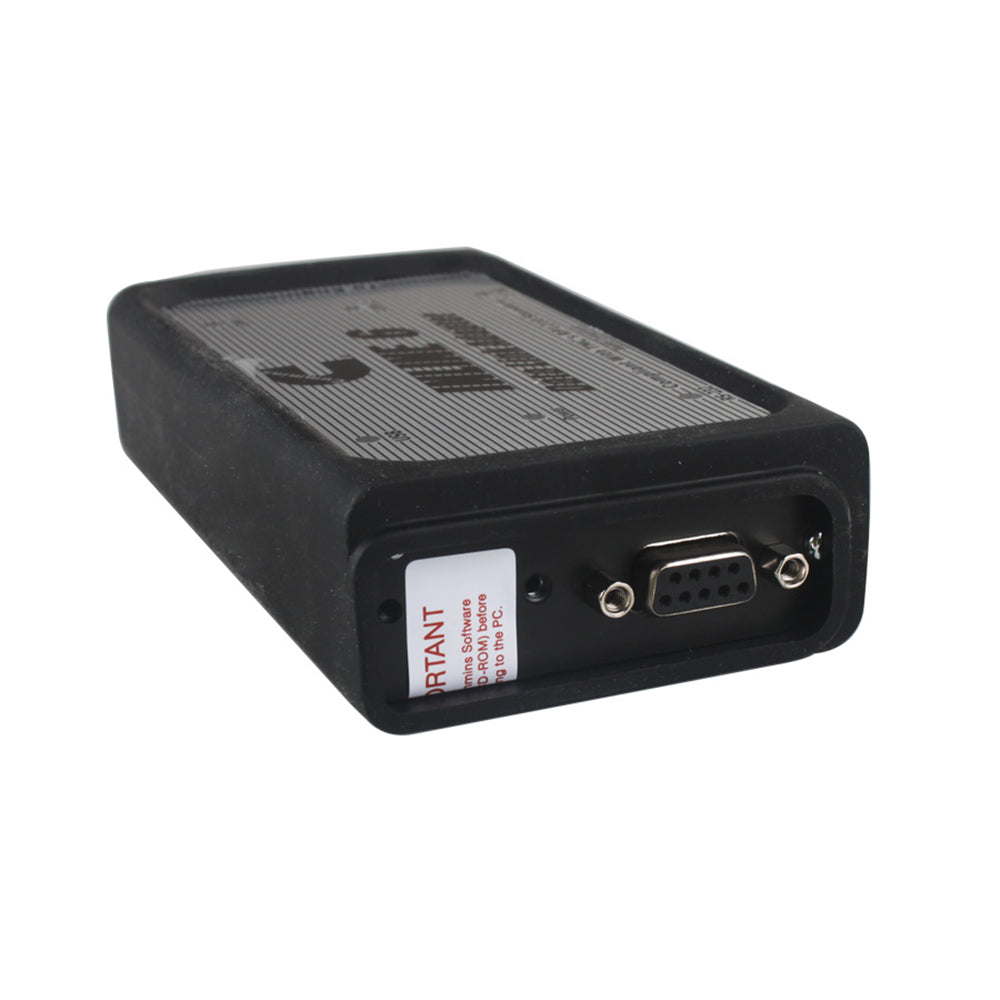

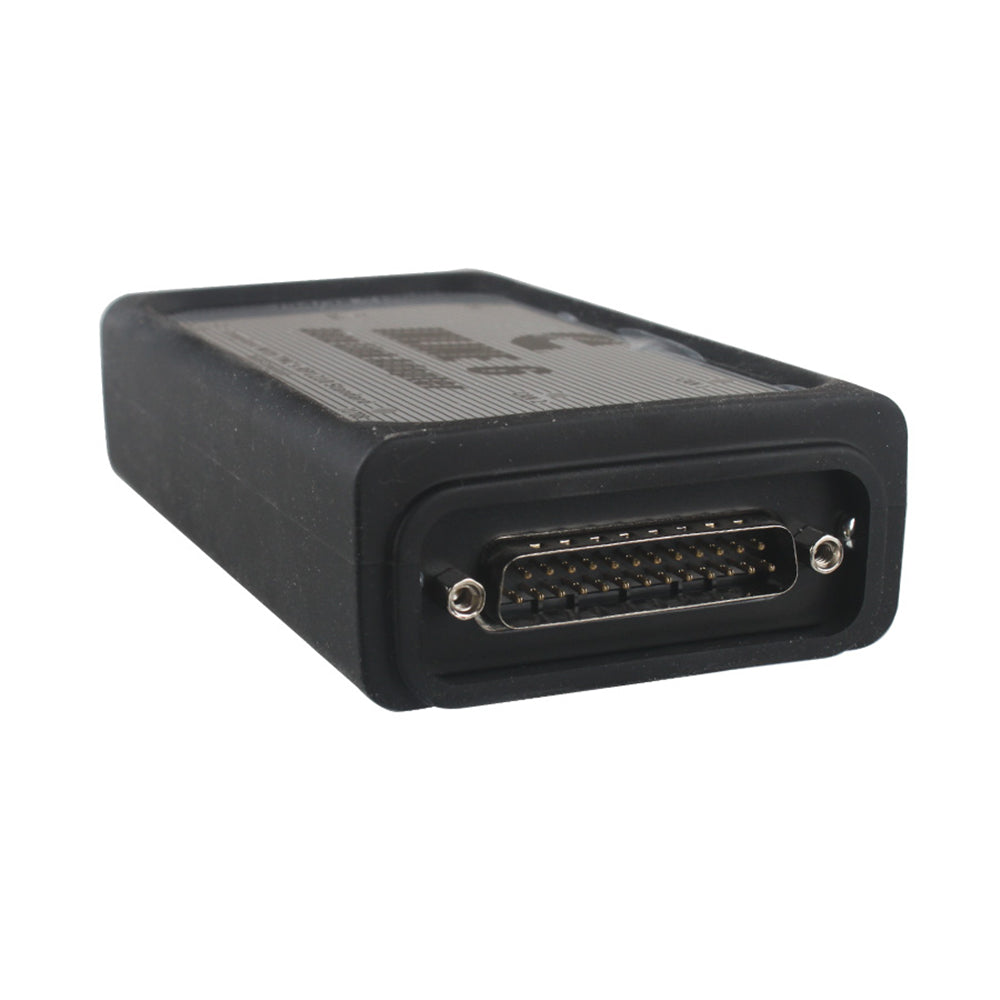

• 1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.

• 2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest C-ummins INSITE, PowerSpec and Calterm III software applications.

• 3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).

• 4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.

• 5. Each C-ummins I-NLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.

C-ummins I-NLINE 6 Data Link Adapter Features:

• 1. Supports SAE J1708/J1587 and J1939/CAN data links

• 2. Both CAN ports auto detect between 250 & 500 kbps

• 3. Supports USB full speed port at up to 2M baud rate

• 4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6

• 5. Supports RS-232 PC serial port at up to 115.2k baud rate

• 6. Is fully compliant with TMC's RP1210 standard

• 7. Small enough to fit in pocket

• 8. Attractive black powder coated aluminum housing provides ruggedness

• 9. Derives 8 V to 50 V DC power from vehicle

• 10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance

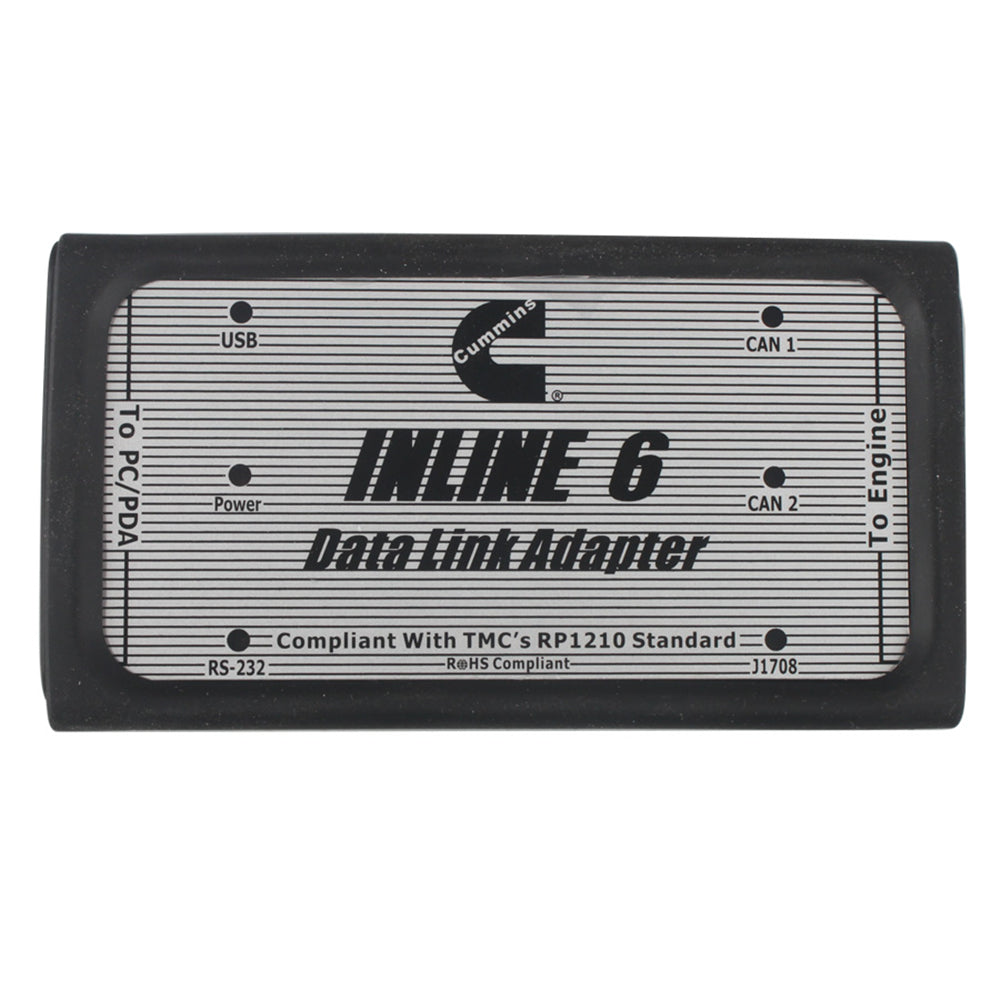

• 11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports

• 12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols

• 13. INLINE 6 is certified to meet European CE requirements

• 14. Rated for -40° to +85° C operating temperature

• 15. INLINE6 meets rigorous Cummins in-cab environmental test requirements

C-ummins I-NLINE 6 Data Link Adapter PROTOCOL SUPPORT:

• CAN - J1939/CAN125/CAN250/CAN500

• 2nd CAN - J1939/CAN125/CAN250/CAN500

• J1587/J1708

• ISO 15765

• ISO 15765

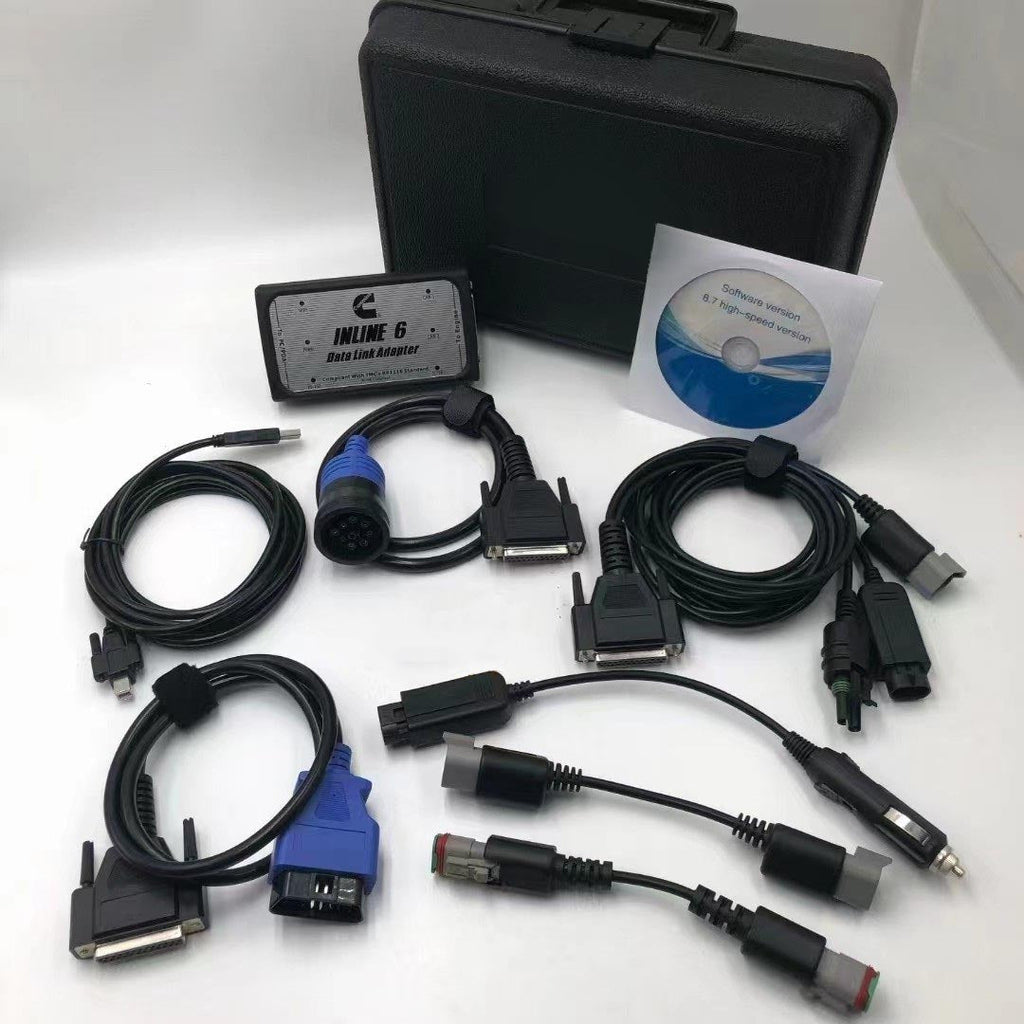

C-ummins I-NLINE 6 Data Link Adapter Package:
