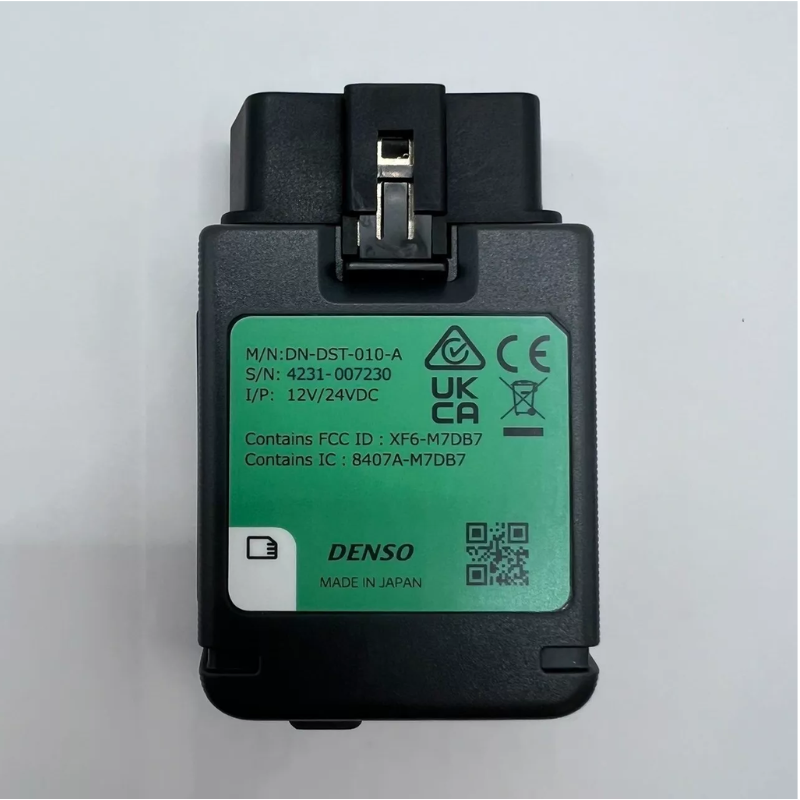

DENSO DST-010-A compliant ISO13400 compliant model,Certified scan tool for OBD inspection Type test number: JASEA-KS-4,Support cars before 08,10 can not support

DENSO DST-010-A support Toyota, Honda, Subaru, Mazda

DENSO DST-010-A Green supported communication standards ISO9141, ISO14229, ISO14230, ISO15765, ISO15031-5, SAEJ1979, ISO13400

DENSO DST-010-A Green compatible with ISO13400 high-speed communication (DoIP) Wireless module enables connection to PC via Wi-F CPU 32-bit microcontroller External interface PC communication USB USB2.0 × 1 (MiniDIN connector) Wireless LAN IEEE802.11bgn 2.4GHz IEEE802.15.1 Ver.4.0/Class1 SD memory card (SD, SDHC compatible) slot × 1 Vehicle communication ISO9141(K/L) HS-CAN DoIP

Service: We provide technical support, if you receive the product use problems, you can contact customer service to solve, we will reply you within 24 hours, thank you!

DENSO DST-010-A Green Supporting Protocols

1. SAE-J2534-1 2004, SAE-J2534-2 2010 Passthru Driver

2. ISO-22900-1/2 MVCI with D-PDU Driver

3. ISO13400-1/2/3/4 DoIP Driver

4. CAN-BUS1 channel:

    HSCAN1/CANFD1: PIN 6/14

5. CAN-BUS2 channel:

    HSCAN2/CANFD2: PIN 3/11

6. 2-way K-Line *5

    K1-Line: indicates K7

    K2-Line: K1,K9,K14,K15

7. ADC input: VBAT ADC input

8. Gigabit eCAT DB16 output

9. 100 Mbit USB2.0 HS network card

10. WIFI relay/bridge

Software Versions

Toyota, Honda, Subaru, Mazda, and Mitsubishi in a four-in-one combination

Honda i-HDS Ver.1.010.011

Toyota GDS Ver.18.000.000 - Real-time update to the latest version after logging in to the account

Subaru SSM3 Ver.1.53.67.9

Subaru SSM4 Ver.36.6.0

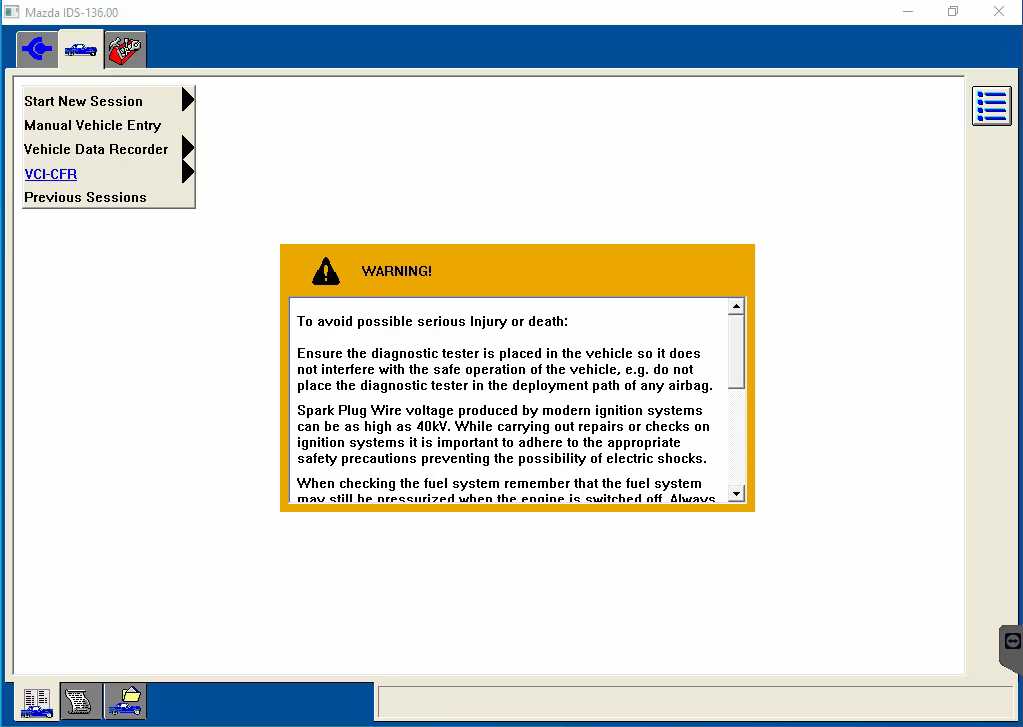

Mazda IDS Ver.136.00 - Real-time update to the latest version after logging in to the account;

Mazda MDARS - Real-time update to the latest version after logging in to the account.

note: The use of the software requires that you have your own account.

DENSO DST-010-A Green Install Processing

Packing List
