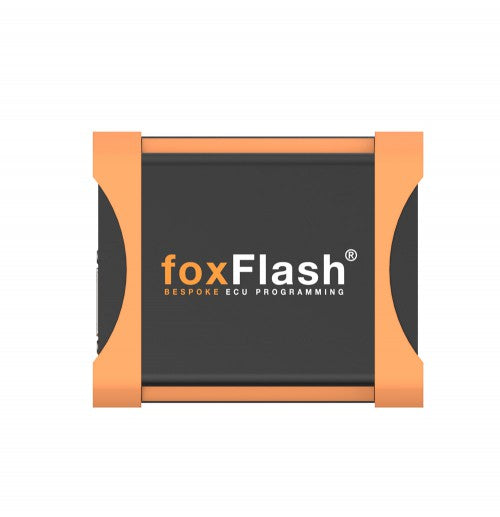

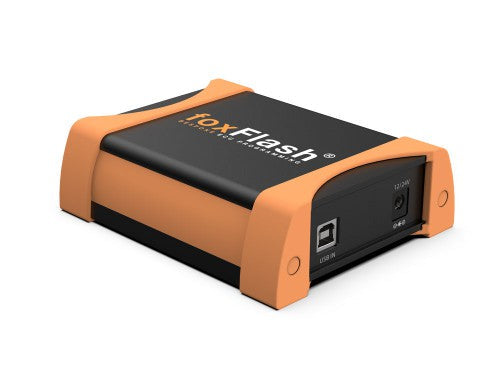

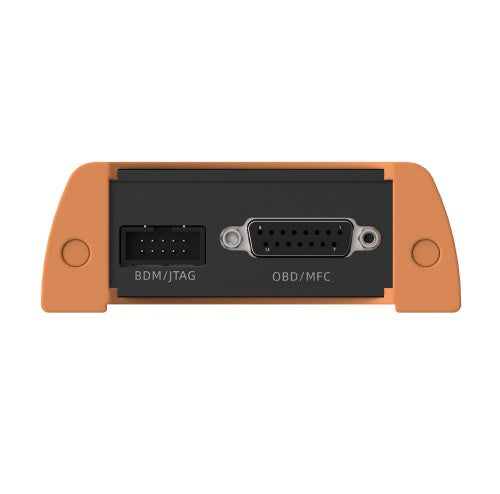

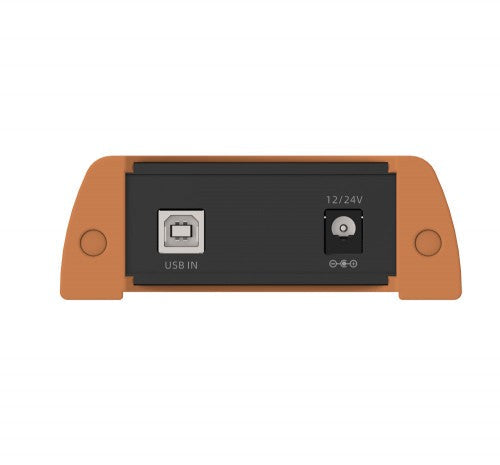

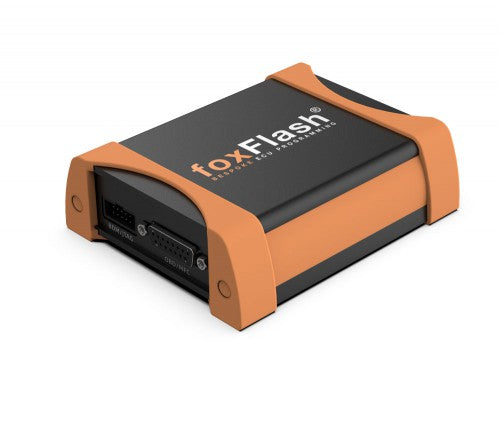

FoxFlash ECU programmer V1.4.2 is a complete tool for reading and programming engine control units via OBD/Boot mode/Jtag systems/Full system and Bench modes

Foxflash Chip Tuning Tool is an ECU & TCU Clone Chip Tuning Tool Support Checksum with WinOLS 4.70 Damos2020

What is FoxFlash ECU Programmer:

FoxFlash is a new, unique and revolutionary tool for automotive professionals, tuners and engine calibration engineers.

FoxFlash is a powerful solution developed for professional chiptunes, calibration engineers and control unit (ECU and TCU) repair shops. FoxFlash includes multi-method control unit programming for tuning ability, this tool is from tuner design, so you can get many of them support.

Since the FoxFlash is so much more than just an ECU programming tool, it simply can’t be compared to any traditional flash tool. Despite other tools how good, this is being good tools for read/write operations, we supply many important features, both on the developer side and in daily use. That is why we recommend FoxFlash.

FoxFlash Support ECU/TCU List

FoxFlash Support ECU List

FoxFlash Support TCU List

Update logs for foxflash software and hardware:

firmware version FW:D087:

update contents：1: Update firmware response speed 2: Rewrite can and kline working speed to improve reading and writing speed

2024-11-28 01:58:10  sofware version 1.4.2    firmware version FW:D087
2024-07-05 16:40:10  sofware version 1.4.2    firmware version FW:D086
2024-05-05 12:31:11  sofware version 1.4.t    firmware version FW:D08A
2024-03-02 15:28:16  sofware version 1.4.b    firmware version FW:D08B
2024-02-05 18:26:16  sofware version 1.4.d    firmware version FW:D08D
2024-01-29 20:57:24  sofware version 1.4.1    firmware version FW:D085
2024-01-02 22:38:06  sofware version 1.4.0    firmware version FW:D084
2023-12-26 13:06:16  sofware version 1.3.9    firmware version FW:D083
2023-12-12 17:31:26  sofware version 1.3.8    firmware version FW:D082
2023-12-06 12:31:31  sofware version 1.3.7    firmware version FW:D081
2023-09-25 08:44:55  sofware version 1.3.6    firmware version FW:D080
2023-05-23 22:50:20  sofware version 1.3.5    firmware version FW:D079
2023-03-03 10:51:28  sofware version 1.3.4    firmware version FW:D078
2023-02-25 14:34:25  sofware version 1.3.t     firmware version FW:D077
2023-02-25 14:34:25  sofware version 1.3.3    firmware version FW:D076
2023-01-20 17:11:55  sofware version 1.3.2    firmware version FW:D075
2023-01-03 20:11:17  sofware version 1.3.1    firmware version FW:D074
2022-11-02 22:18:12  sofware version 1.3.0    firmware version FW:D073
2022-10-22 22:18:12  sofware version 1.2.9    firmware version FW:D072

FoxFlash Highlights:

1. Master version

2. Full protocols open

3. VR read online work (some ECUs need to use our VR system, the tool auto-connect to our server download file )

4. ECU can be restored to its original if your ecu was damaged or met some bad tuning, use our tool can restore it to its original.

5. Free update. No subscription, and no annual fee. No activation.

6. Tool can online and offline work (some of ecu and functions can be offline)

7. Auto checksum

8. Online support

9. Multi-language:  Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish

10. Two Years Warranty.

11. Excellent technical support.

12. Help desk and tuner account

13. ECU and TCU connect wires with pdf

14. Auto support EEPROM and flash checksum

15. Support MEDC17 free clone service (most other tools need to patch the files after read-out, but ours is free)

16. With the Latest firmware and updates. Use better quality BOM and PCB. More stable, foolproof, and reliable.

17. FoxFlash ECU TCU Car List, or check driver list on dfb-technology, it is much easier to search than pdf

18. Compatible Operating Systems: Windows 7, 8/8.1, 10, 11 64 bits, Recommended

19. Configuration: CPU > 2.5 GHz (Intel i5, i7), RAM > 4GB

FoxFlash is a powerful tool for ECU and TCU and supports a lot of modes.

1. OBD mode：

Read the data from Diagnostic port ,you need remove the ecu or TCU from car or open the ecu box , just read everything from car, supports OBD VR read, and original file from our server, you can direct OBD VR read it.

2. BENCH mode:

With service mode, you can use this mode to clone or backup all ecu data, read the internal flash and external flash and EEPROM data, so you can save a lot of money for cloning ecu and TCU, and you also can clone TCU and chip tuning with this mode.

3. Jtag mode:

Open the ECU, and wire it or use our adapter to connect ecu ways, some of the Denso ECUs always need to use this mode for reading and writing.

4. Boot mode:

Open the ecu and always can back up everything, read the flash and EEPROM, you can save some ecu cause your OBD to write failed, or some other reason causing the ecu dead.

5. Full system:

You can read and write by pinout for most of ecu and tcu.

6. BDM mode:

Some of the ECU need to read and write in BDM mode, open the ecu and use our adapter to connect it.

FoxFlash Software Display:

Operating System:

Windows 7

Windows 8/8.1

Windows 10

Windows 11

FoxFlash Supported Functions:

ECU clone

TCU clone

Chiptuning

Stage1-stage4

Vmax off

Adblue and SCR off

DPF  OFF

Flaps OFF

pop bangs

gearbox data to adjust LC

sport display

immo off

dpf off

dtc off

GPF/OPF Removal

DPF Removal

EGR Removal

DTC Removal

ADBlue Removal

HOT Start Fix

IMMO Removal

Readiness Calibration

Flaps / Swirl Removal

TVA Removal

Sport Displays Calibration

Cold Start Noise Reduction

Kickdown Deactivation

StartStop Disable

MAF Removal

Speed Limiter Removal

Torque Monitoring Disable

Burbles Activation

Popcorn Activation

EVAP Removal

Exhaust Flap Removal

SAP Removal

AGS Removal

BMS/BPCM

Lambda/O2 Removal

Launch Control

OBD Reading Protection

Boost Sensor Calibration

LC, AL and NLS for MED9.1

Checksum Fix

vmax, swirl off

restoring ECU or TCU factory setting service

VIN fix (EEPROM support checksum, so you can easily change VIN and then write back )

Supported Winols Damaos supply

As we all know, windows Damaos and A2L are very expensive, with a FoxFlash, you will have this function for free, so you can get it for chip tuning, DTC off, and so on.

Supported Control Units

We believe a control units list can be considered a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.

Please note that FoxFlash can help you select the right protocol with its auto-detection feature during identification on most control units.

Support types:

1. CAR

2. TRUCK

3. MOTORBIKE

4. BOAT

5. Additional TCU package available for Automatic Transmission.

BENCH MODE for complete reading and writing (full backup) TRW EMS2.2 and TRW EMS2.3

 FULL READ AND WRITE VIA PINOUT IN BENCH MODE:

• BOSCH EDC7
• BOSCH EDC16
• BOSCH ME9 / MED9

FULL READ AND WRITE VIA PINOUT IN BENCH MODE

• BOSCH MD1
• BOSCH MG1
• FREESCALE SPC5777
• AURIX TC29x
• ST SPC58

FULL READ AND WRITE VIA PINOUT IN BENCH MODE:

• BOSCH EDC17
• BOSCH MED17 / ME17
• SIEMENS PCR2.1
  (Unlocking is also possible via pinout)

FULL SYSTEM VIA PINOUT (MICRO/FLASH + EEPROM) OF ECUs:

• BOSCH
• CONTINENTAL
• DELCO
• DENSO
• MARELLI
• SIEMENS
• TEMIC

BDM E JTAG MODES FOR:

• BDM MPC 55x
• BDM MPC 56x
• BDM MC32 / ZC32
• BDM HC12 / S12x

JTAG NEXUS MPC/SPC 56xx

JTAG NEXUS MPC 55xx

JTAG RENESAS

SH7055

SH7058

SH7059

SH7251

SH72543

SH72544

JTAG NEC 76F00xx

76F0038AGD

76F0038GD

 76F0039AGD

76F0039GD

76F0040GD

76F0070

76F0085

ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION:

• FULL READ AND WRITE TCU (MICRO+EEPROM)
• TCU CLONING
• TCU CODING FUNCTIONS

How to activate foxflash?

please enter your Foxflash serial number on the window like below photo show
then you can activate Foxflash software by yourself

 FoxFlash Update Log:

 21/7/2022
NEW DRIVER FULL SYSTEM ON THE BENCH FOR ACDelco E78 E80 E39A OPEL / CHEVROLET / BUICK ECUs

18/7/2022
NEW OBD DRIVERS FOR CARS NISSAN, RENAULT, INFINITI, AND DACIA WITH ECU CONTINENTAL SID310

18/7/2022
Added automatism to clone the following control units with OTP zone adaptation and password:
- BRP Can-Am ME17.8.5
- BM-W MED17.2
- BM-W MEV17.2

30/6/2022
NEW BOOT MODE (BAM) FOR DELPHI CRD2.xx AND CONTINENTAL EMS S8 CONTROL UNITS

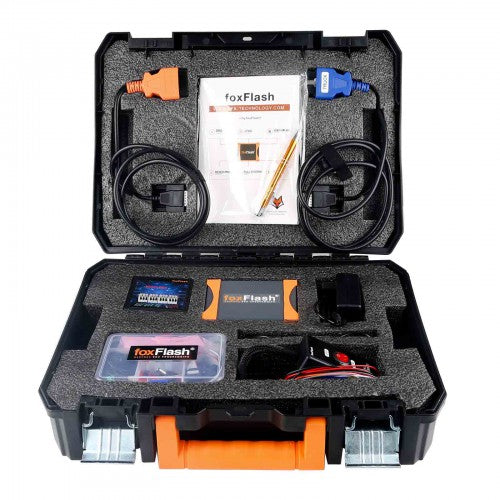

FoxFlash ECU Programmer Package List:

Hardware:

1pc x Master machine

1pc x Fox bench box

1pc x USB cable

1pc x Power adapter

1pc x Fox box store over 10 adpaters

1pc x Jtag and bdm cables

1pc x Pen

1pc x Notebook

1pc x Suitcase

1pc x Function cable for boot, bench, kline links .

1pc x Truck OBD cable

1pc x Car OBD cable

1pc x Paper box

1pc x Install guide

Software:

1pc x  Main software  foxflash 1.42

1pc x  Technical Support

1pc x  Login account for software and tools

1pc x  PDF pacakges for connecting ecu and tcu

1pc x Join facebook group for support

1pc x Online chat support for use

The extra package is according to the user's request after the user gets the tool.

1pc x Tuner account

1pc x Helpdesk

1pc x WinOLS damaos, A2L
