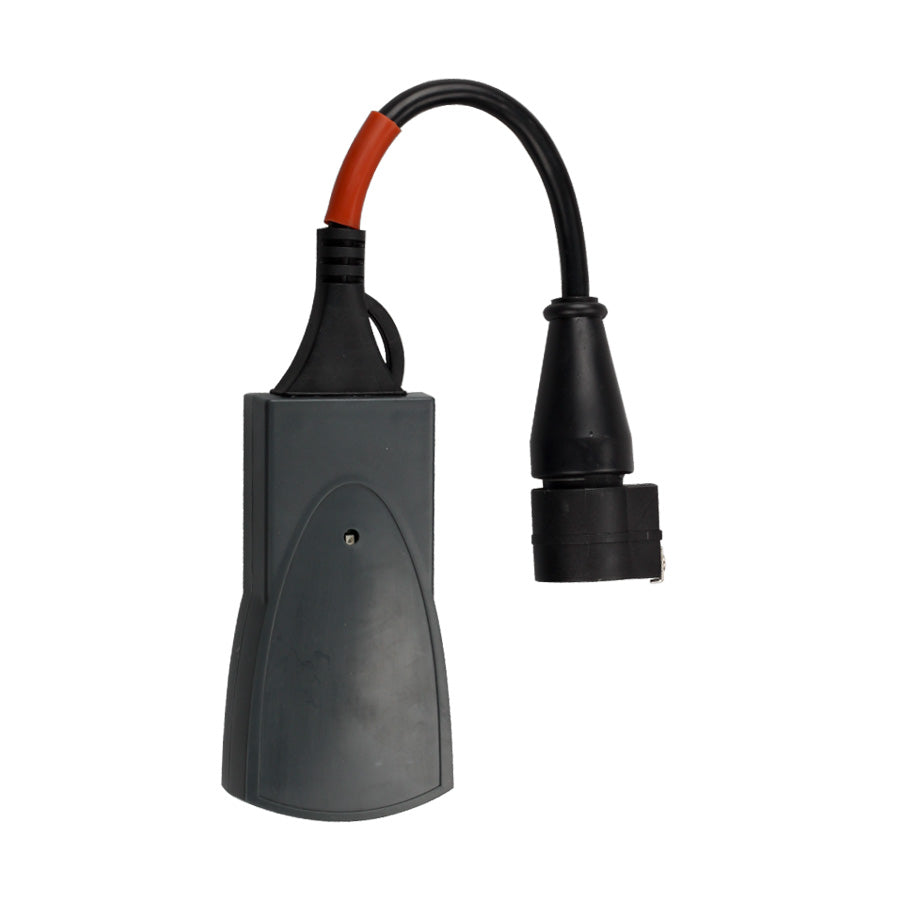

Le.xia 3 PP2000 Diagbox For Peu.geot Ci.troen Diagnostic Tool with Full Chips

Le.xia 3 PP2000 with Diagbox is the professional diagnostic tool for Peu.geot and Ci.troen from 1995 to 2019.

Top 8 Reasons To Get Le.xia 3 PP2000 Diagnostic Tool Highlights:

1. Software Version: Le.xia 3 V48, PP2000 V25, Diagbox V7.83

(Software: 4.8 Firmware: 4.2.0; Firmware will update with software update)

2. It works for both Citroen and Peugeot. Now support Peugeot 307!

3. Update via CD: please do not update it online, otherwise the device may be damaged

4. PCB edge is golden with original full chips. Double PCB has 7pcs optocouplers, which are 100% original and new.

5. Relays are 12pcs, which are 4.5V, it is more stable.

6. Have 2pcs Optocouplers.

7. Le.xia 3 Interface has the Best quality chip, the same as the original chip.

8. Multi-language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech.

Le.xia 3 PP2000 Hardware and Software Requirements:

Operate System: XP system/win 7 32-bit, and must close the anti-virus program.

The software requires at least Intel Celeron / Pentium III 400 MHz,128 MB RAM,50MB free HDD space, and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed.

Computer cannot install anti-virus software.

PP2000 cannot install with DIAGBOX in same computer.

Please create a blank txt file named ‘version’ in C:\ before installation of LEXIA3

Le.xia 3 PP2000 Diagnostic Tool Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions of the original dealer diagnostic tool. Our Lexia 3 diagnostic interface contains a K-Line multiplexor, CAN-BUS interfaces and an SAE J1850 bus (both PWM and VPW).

1. Read the identification

Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read fault codes

Displays all stored and pending fault codes with complete descriptions (e.g. "Rail pressure - too low pressure").
The program supports report printing or copying to a clipboard.

3. Clear fault codes

This function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)

Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values

Program displays live Data like Engine Speed,Battery voltage,Oxygen Sensor,Coolant Temperature, etc.Values can be displayed in graph, 9 values at once, or full listing (all measured values).Logging to file is also supported,which allows offline analysis.

6. Actuator test

Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

7. Programming Functions/Adaption

This feature is of great importance in all vehicles because systems like Engine control units, Immobilizers, Airbags, Alarms, Body Control Units, and some others, require you to perform reset or programming procedures after car repair is done, or even configuration after replacing broken

8. Control Unit

Hardware and software requirements Software requires at least IntelCeleron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed. If customer requires, we can prepare ready to work PC.
