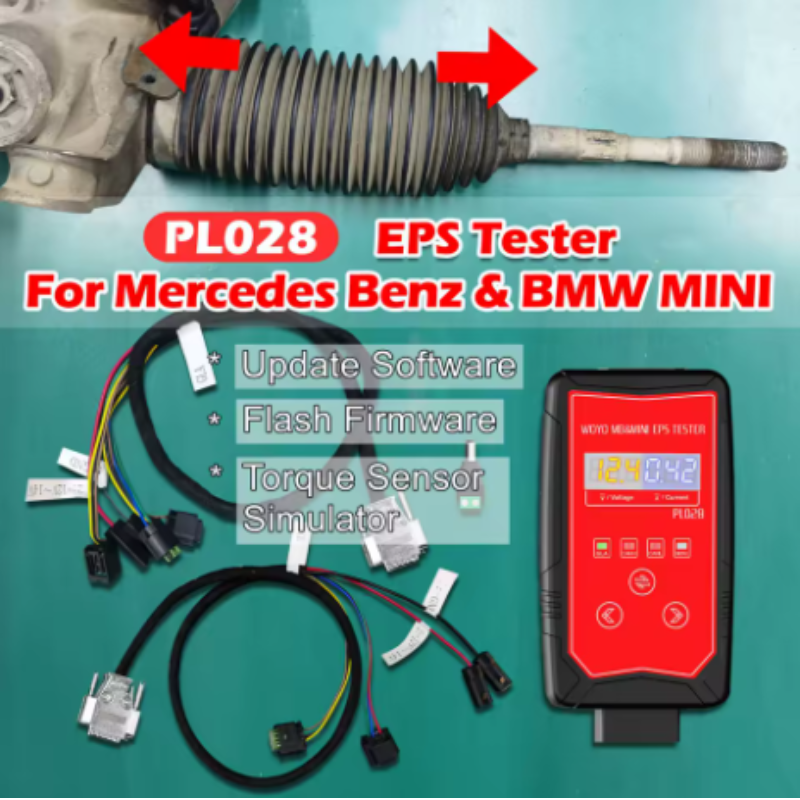

After you repair the EPS motor, PL028 can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

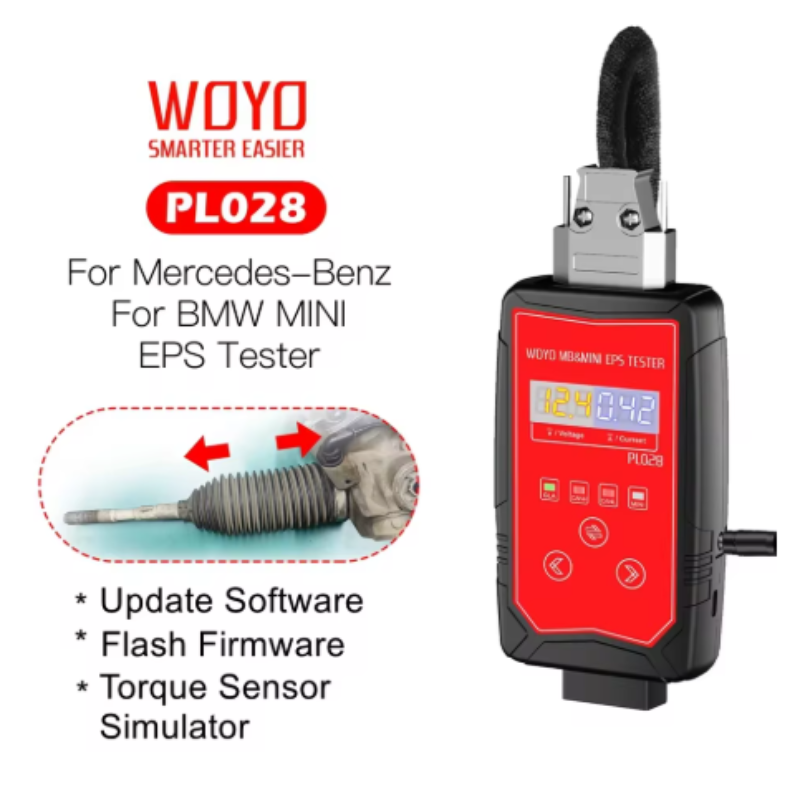

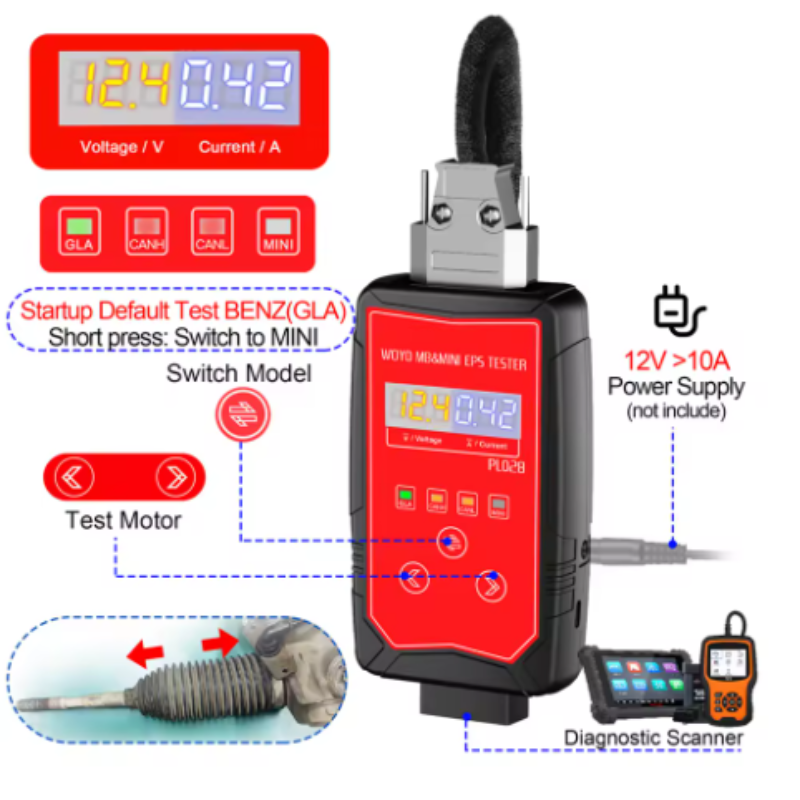

WOYO PL028 Function:

1.Switch: The default test for startup is GLA (For MERCEDES-BENZ ),short press to switch model (for MINI)
2."<" ">": Retract or Rotate the Wheel Steering Motor.
3.Power supply:12V >10A, we don't send with this cable, but send with 12V power adapter.
4.Screen:Show work voltage or current of the tester.
5.Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

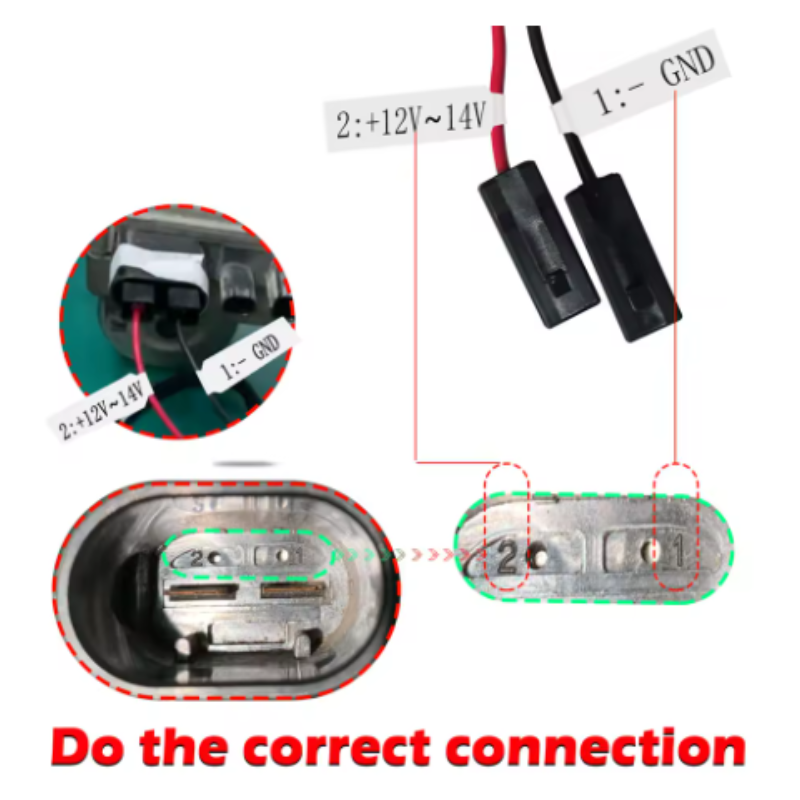

Pay attention for the direction:

Do the correct direction connection for the power jack of EPS motor, notice the "1" & "2" sign.

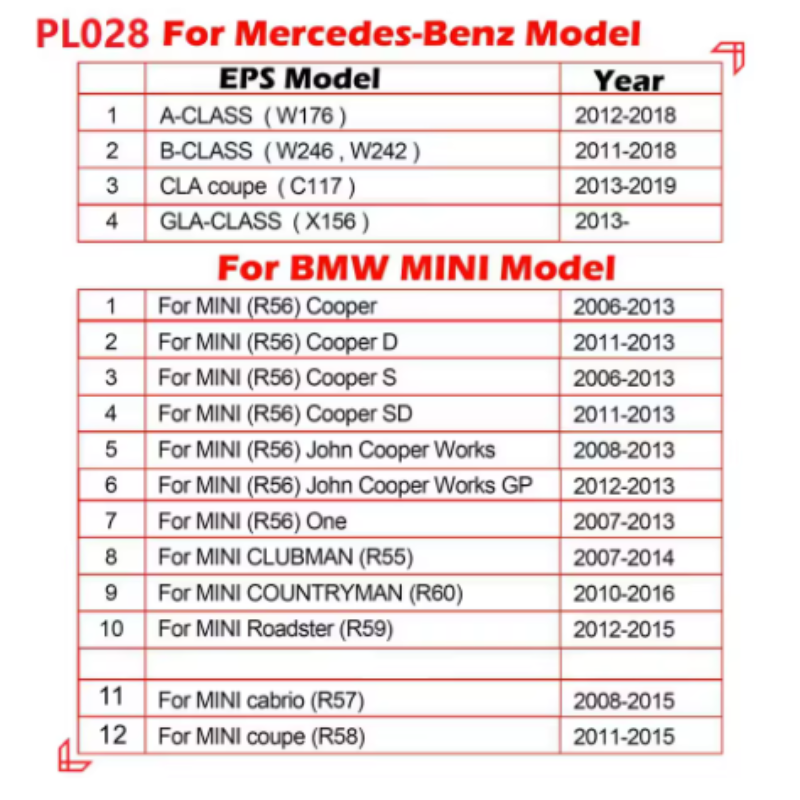

WOYO PL028 Support Model:

For MERCEDES-BENZ:
For MERCEDES-BENZ A-CLASS (W176) 2012-2018
For MERCEDES-BENZ B-CLASS (W246,W242) 2011-2018
For MERCEDES-BENZ CLA coupe (C117) 2013-2019
For MERCEDES-BENZ GLA-CLASS (X156) 2013-

For BMW MINI:

For MINI (R56) Cooper 2006-2013
For MINI (R56) Cooper D 2011-2013
For MINI (R56) Cooper S 2006-2013
For MINI (R56) Cooper SD 2011-2013
For MINI (R56) John Cooper Works 2008-2013
For MINI (R56) John Cooper Works GP 2012-2013
For MINI (R56) One 2007-2013
For MINI CLUBMAN (R55) 2007-2014
For MINI COUNTRYMAN (R60) 2010-2016
For MINI Roadster (R59) 2012-2015
For MINI cabrio (R52) 2004-2007
For MINI cabrio (R57) 2008-2015
For MINI coupe (R58) 2011-2015

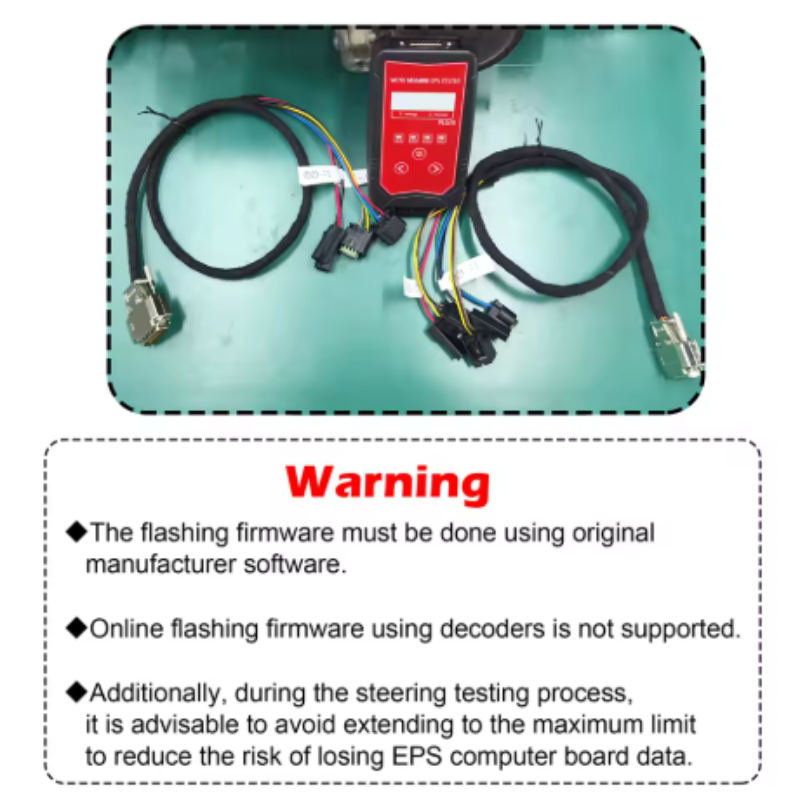

Note:

1. The flashing firmware must be done using original manufacturer software.
2. Online flashing firmware using decoders is not supported.
3. Additionally, during the steering testing process,it is advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.
4.Pay attention for the direction:Do the correct direction connection for the power jack of EPS motor, notice the "1" & "2" sign.

WOYO PL028 Package List:

Tester*1
Adapter Cable*1
12V Power Adapte*1
