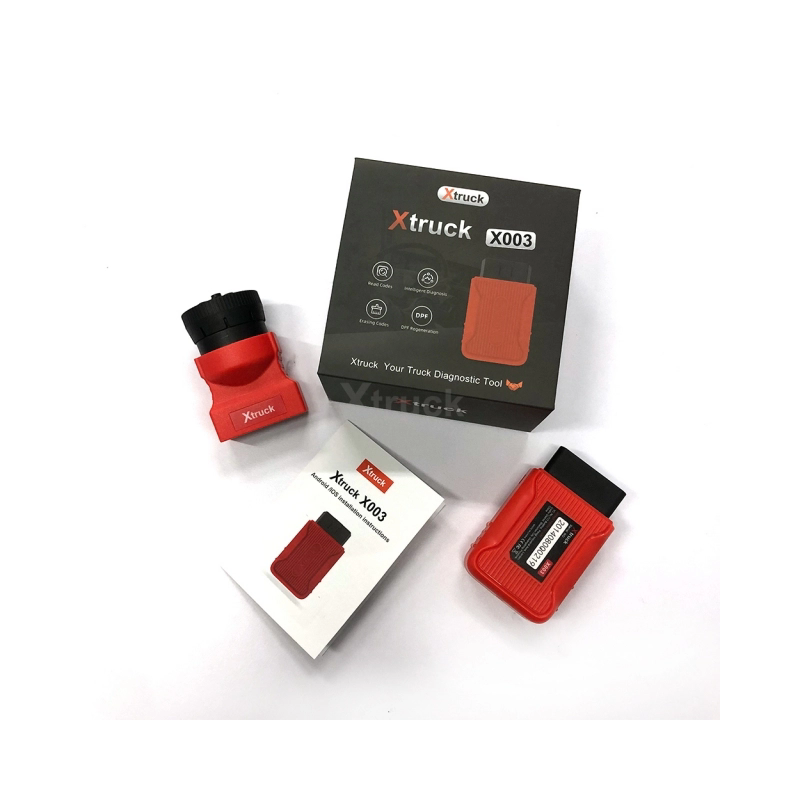

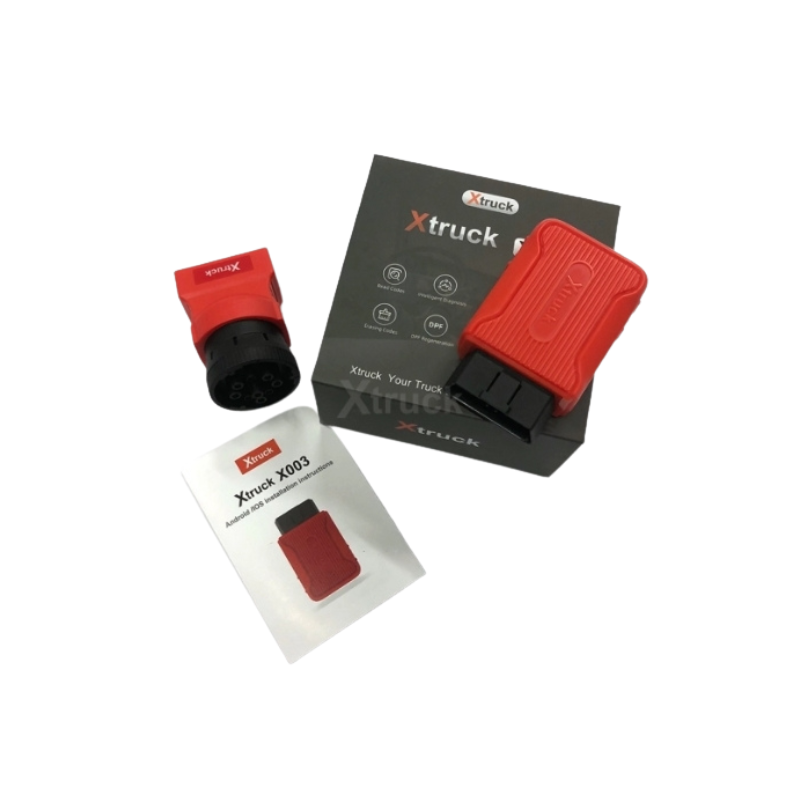

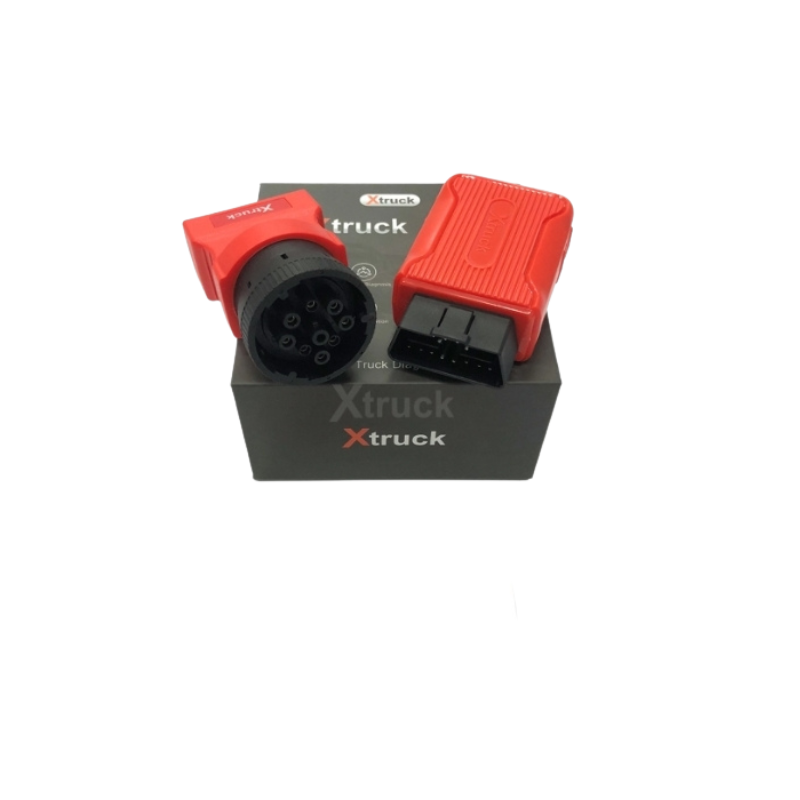

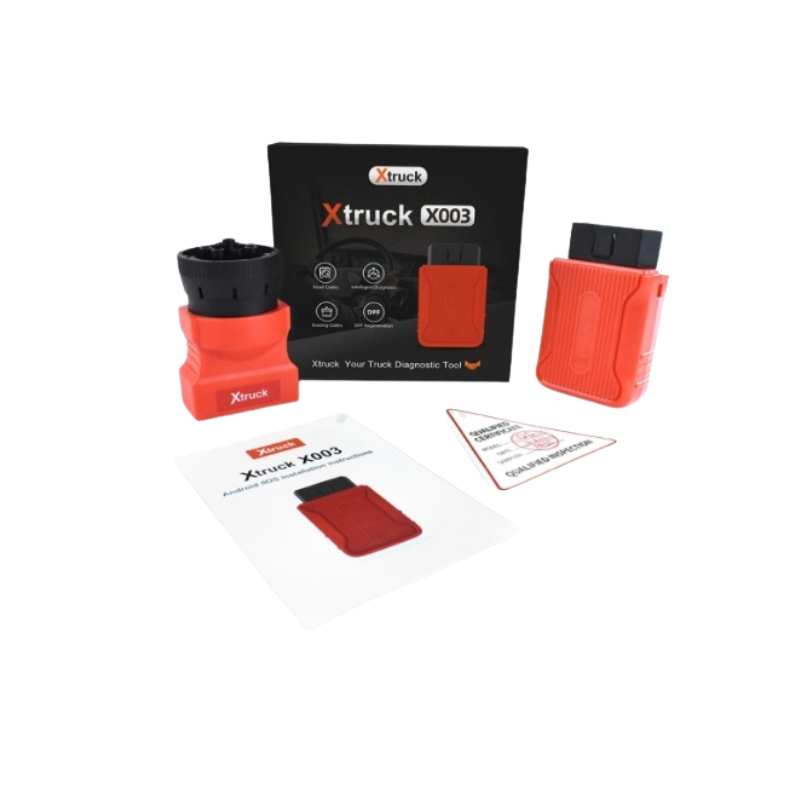

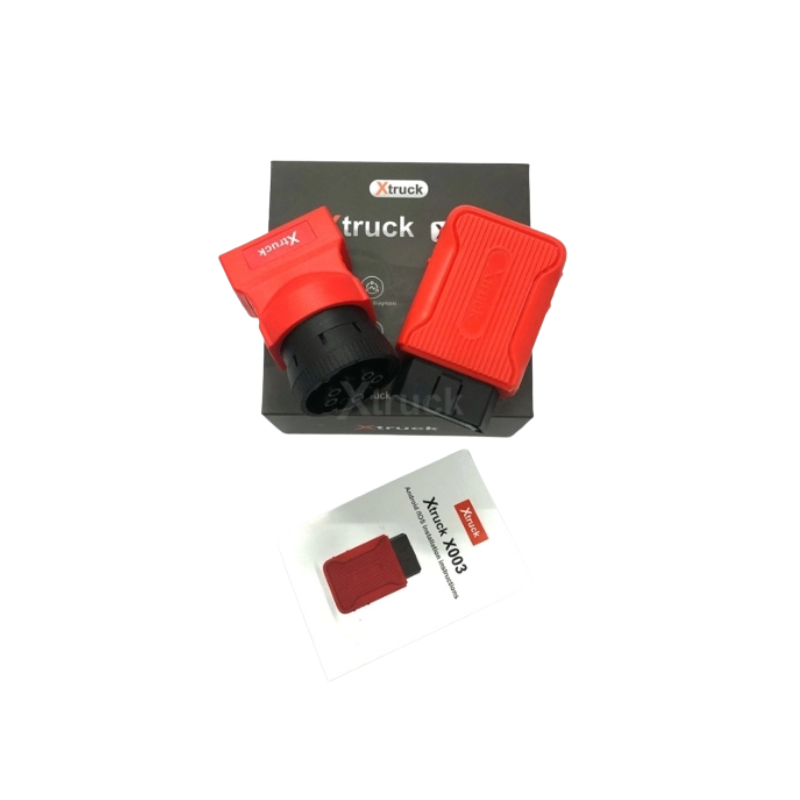

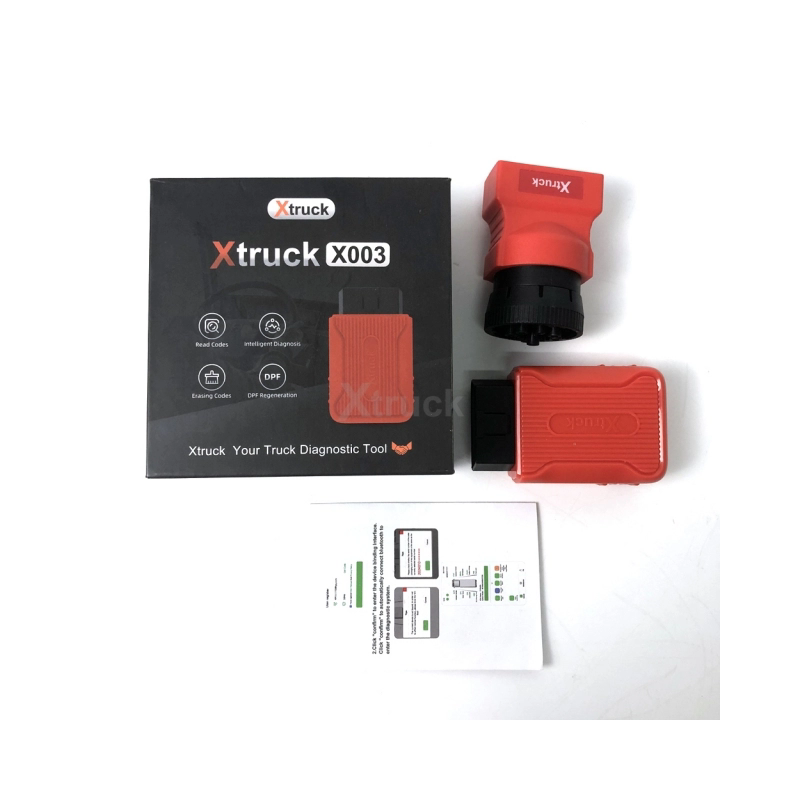

Xtruck X003 is a professional diagnostic tool for heavy duty trucks, used for reading and clearing fault codes, and DPF regeneration tests.

Xtruck X003 supports Cummins, Volvo and Scania trucks diagnostic tools,eliminating the need to purchase different purpose onboard scanners for each model.

Why Choose Xtruck X003 Bluetooth OBD II Scanner?

1. Exclusive Free Application: The Xtruck X003 OBD II application features an exclusive internally developed application with the latest vehicle data.
2. Complete OBD II Functionality: Not only does it accurately identify codes and possible causes, but it also supports engine related, brake related, fault alarm, intake, fuel related, and coolant level.
3. Stable Connection: It is compatible with both Android and IOS, and adopts the latest Bluetooth 5.1 solution. It can connect to the vehicle's OBD interface via Bluetooth instantly, making it easier to read ECU data and significantly enhancing the user experience.
4. Special Function:DPF Regeneration Test.

DPF Regeneration Can Be Carried Out Under The Following Circumstances

1. Replacement of the exhaust back pressure sensor.
2. Removal or replacement of the Pm drain valve.
3. Disassembly or replacement of the fuel additive nozzle.
4. Removal or replacement of the catalytic oxidizer.
5. Activation and maintenance of the DPF regeneration machine.
6. Replacement of the DPF regeneration control module.

Xtruck X003 Support 8 Kinds Of OBD II Test Modes

1. Reading Codes And Clearing Codes: Within 3 seconds, read the fault codes and clear the suspended fault codes, and turn off the engine light.
2. I/M Readiness Test: The purpose of this monitor is to test the vehicle's own emission control system. This monitor is also known as an emission monitor. Determine whether your vehicle is ready for the smoke test.
3. Vehicle Information: Display information such as VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number).
4. Real-Time Data Stream: Read rich real-time data stream data to monitor the vehicle's operating status, including fuel system status, engine coolant temperature, speed, and various sensor parameters.
5. DTC Search: The device has a built-in, latest OBD II DTC library. After you input the fault code and select the car brand, it will display the definition and possible causes to help you understand where the problem lies and possibly solve it yourself.

Xtruck X003 Support Special Features

Customizable Dashboard: You can view various types of real time data, including Rpm, Vss, etc., Maf, Tp, Load Pct, Sparkadv, Iat, Vpwr, engine-related data streams, etc. These data streams notify you of the vehicle's operating status.

Performance Testing: Vehicle performance testing plays an important role in driving safety. Pid charts are available, including corresponding values such as Rpm, Vss, etc., Maf, etc.

Xtruck X003 User Manual

• Download Method

Support Android/lOS Port Scan QR Code To Download
(Each Product Has a Unique Serial Number. Please Read The Product Manual Carefully And Download The App)

• The Positions Where OBD Is Inserted Into The Vehicle
  Under The Steering Wheel
  The Bottom Of The Central Control Screen
  The Lower End Of The Dashboard In The Copilot

• The Ignition Device Is As Follows

• Insert The OBD Port Of The Vehicl

• User Registration Installation
  After The Installation, Turn On The lenition Switch Othe Vehicle And nsert The Xtuck X003 Into The OBD diagnostic Por Of The Vehicle To Power It

• The User Registers And Logs lnto The Bound Device
  1 Enter Your Email, Get The Verification Code And Click"Register"
  2.Click"Confirm" To Enter The Device Binding Interface Click "Confirm"To Automatically Connect Bluetooth Toenter The Diagnostic System

• Xtruck X003 Is Very Easy To Operate
