1. OBDSTAR MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently.
2. Support IMMO programming for motorcycle and motorboat.

OBDSTAR MS80 Intelligent Motorcycle Diagnostic Tool Support IMMO Programming

Description

OBDSTAR MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!

OBDSTAR MS80 Features:

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.

Notice: Support English only, can't change language.

OBDSTAR MS80 Advanced Functions:

1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

Motorcycle/Snowmobile/ATV/UTV Diagnostic Function Support Vehicle Series:

Asia:
Honda, Hondamontesa, Kawasaki, Kymco, Suzuki, SYM, Yamaha

Europe:
Aprilia, Benelli, BMW, Derbi, Ducati, Gasgas, Gilera, KTM, Malaguti, Moto Guzzi, MV Agusta, Peugeot, Piaggio, Triumph, Vespa

Americas:
BRP, Harley Davison, Indian, Victory

Motorcycle Key Programming Support Vehicle Series:
Gilera, Harley Davison, Peugeot, Piaggio, Triumph, Vespa

PWC Support Vehicle Series:
BRP, Honda, Kawsaki, Yamaha

More functions under developing...

OBDSTAR MS80 Latest Update Information:

KYMCO DIAG UPGRADE【V30.10】UPGRADE on Jul 30th, 2022


MS80/MS50 BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:


MS80/MS50 ENFIELD[V30.00] UPGRADE on Mar 30th, 2021


MS80 ADIVA V30.00 Update on Mar 16th, 2021:


MS80 KVNMOTORS V30.00 Update on Mar 16th, 2021:


OBDSTAR MS80 Function


OBDSTAR MS80 Vs. MS50:


Item			MS80	MS50
Diag Cable			High Quality，low price	High Quality，low price
Main machine			8 inch android tablet	5 inch android tablet，OBD charge
Plastic Cover			Industrial Design	Industrial Design
Smart switch pin			Highly integrated diagnostic connector	Highly integrated diagnostic connector
Diag Connector			OBD adapter, no need to disassemble	OBD adapter, no need to disassemble
Operation System			Android	Android
Wifi			one button click	one button click
Language			English and more local language	English and more local language
Remote assistance			Yes, engineer can assistant via remote control software	Yes, engineer can assistant via remote control software
Motorcycle IMMO	European Area	TRIUMPH	√
		GILERA	√
		PEUGEOT	√
		PIAAGIO	√
		DUCATI	√
		VESPA	√
	Americas Area	HARLEY	√
Motorcycle Diagnosis	Asian Area	HONDA	√	√
		KAWASAKI	√	√
		KYMCO	√	√
		SUZUKI	√	√
		SYM	√	√
		YAMAHA	√	√
		MONTESA	√
		PGO	√	√
		HARTFORD	√	√
		AEON	√	√
		BENELLIDSK	√
	European Area	APRILIA	√
		BENELLI	√	√
		BMW	√
		DUCATI	√
		KTM	√	√
		PIAGGIO	√	√
		TRIUMPH	√
		VESPA	√	√
		MALAGUTI	√
		GASGAS	√
		GILERA	√
		GUZZI	√
		AGUSTA	√
		DERBI	√
	Americas Area	HARLEY	√
		INDIAN	√
		VICTORY	√
		BRP	√
OBD	OBD-II	OBD	√	√
Motorboat Diagnosis	Asian Area	HONDABOAT	√

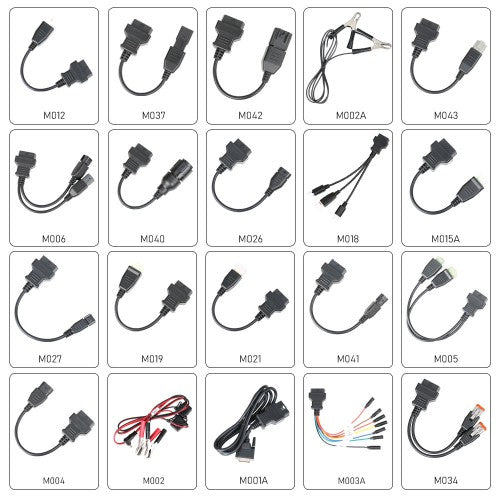

Accessories Comparison
M001		Main Cable	√	√
M002		Power Cable	√	√
M002A		GND	√
M003A		Multi functional jumper	√	√
M004		APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA	√	√
M005		KAWASAKI	√	√
M006		KAWASAKI	√
M012		SUZUKI	√	√
M015A		HONDA/HONDA MONTESA	√	√
M018		YAMAHA	√	√
M019		KTM	√
M021		AEON/BENELLI/BENELLI DSK	√	√
M026		SYM	√	√
M027		KYMCO/KAWASAKI	√	√
M028		pgo		√
M030		HARDFORD		√
M034		HARLEY-DAVIDSON	√
M037		DUCATI	√
M040		BMW	√
M041		EURO V	√	√
M042		INDIAN/VICTORY	√
M043		BRP	√
P001		IMMO KIT(Optional)
12V2A		CHARGER	√	√
Support system			1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems	1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems
Advanced Function			Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)	Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.)
Diagnostic connector location			√	√
Diagnostic connector Display			√	√
Technical Bulletin			√	√
Fault Guidance			√	√
Data Flow Text/ Waveform Diagram			√	√
Instrument Diagram			√	√
Any menu back			√	√
Interactive Circuit diagram			√	--
Components Description			√	--

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core
ARM Cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card:
32G Micro SD (TF) card supported
Storage capacity: 32GB

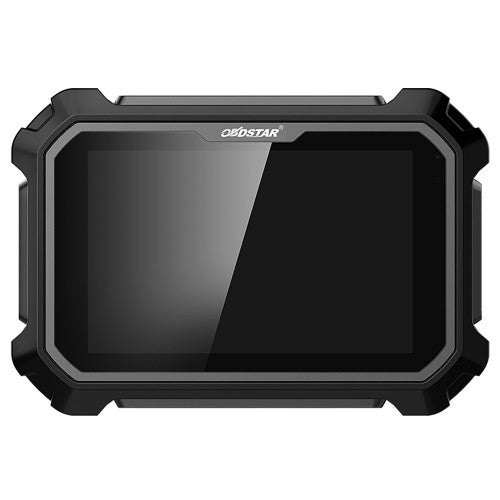

LCD：8.0 inch
LCD resolution: 1280*800
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -10℃～55℃（14℉～131℉）
Storage temperature:  -20℃～70℃（-4℉～158℉）
Weight:  1kg（Main Unit)
Dimension: 254mm*174*mm*35mm

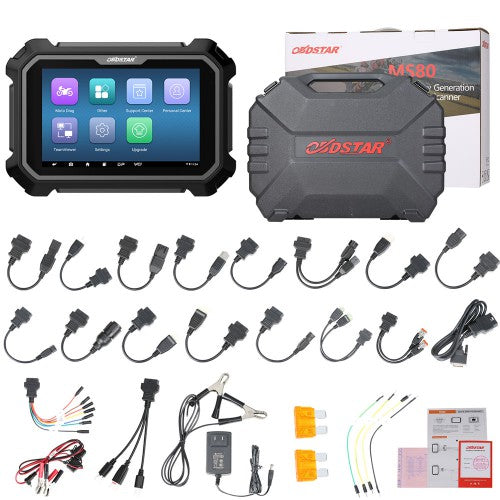

Package include

1pc x M001         Main Cable
1pc x M002         Power Cable
1pc x M002A      GND
1pc x M003A      Multi functional jumper
1pc x M004        APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005        KAWASAKI
1pc x M006        KAWASAKI
1pc x M012        SUZUKI
1pc x M015A      HONDA/HONDA MONTESA
1pc x M018        YAMAHA
1pc x M019        KTM
1pc x M021        AEON/BENELLI/BENELLI DSK
1pc x M026        SYM
1pc x M027        KYMCO/KAWASAKI
1pc x M034        HARLEY-DAVIDSON
1pc x M037        DUCATI
1pcx M040        BMW
1pc x M041        EURO V
1pc x M042        INDIAN/VICTORY
1pcx M043        BRP
1pc x 12V2A      CHARGER
1pc x P001 IMMO KIT (Optional)
