G-M MDI 2 Diagnostic Tool Multiple Diagnostic Interface 2 Compatible with original G-M software.

G-M MDI 2 Original 1:1 VCI Support online programming function through G-M SPS subscription.

G-M MDI 2 Overview:

Support Multi-Languages available: English, French, German, Italian. etc. Total 30 languages to choose.

Hardware: Original 1:1 support car till 2023

Software version:  Continuous updates （with TLC, to stay on the latest software version ）

VXDAS offer link to download, technician remote to install after download complete

Software Include: Tech2win, GDS 2 ,RDS 3 （ One-free installation of the software）

 Supports CAN FD protocol

Operating system: Window 7, Window10

PC requirement: ]I5 CPU, 4G RAM

Update Method: 1-Year Free Update Online（After 1 year, $80 to renew it）



G-M MDI 2 Hardware & Software Feature:

Original 1:1 hardware

Support DoIP protocol

Support offline diagnosis and matching coding

Support online programming if the client has an online account (subscription)

Support all of the existing G-M protocols： UART，Class 2， KWP2000，G-MLAN (CAN)

G-M MDI Manager, GDS2, RDS3, TECH2WIN, VDS, VDS2, DPS, DPS2, SIPS, TLC, SCS

Beginning with the 2008 model year vehicles, Pass-Thru will be the only programming method available

G-M MDI 2 overview of how connections are made:

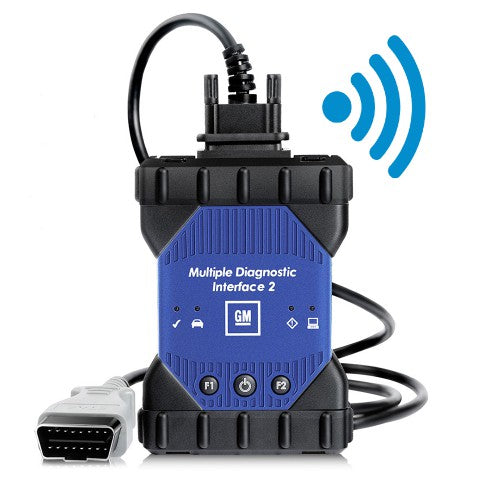

1. WIFI to connect

2. DLC cable connects to MDI2(The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use.)

3. USB. It may also be powered over USB to perform firmware updates only using a PC.

G-M MDI 2 Points to note：

Support remote installation, what you need to do

1. Minimum computer configuration needs I5 4g, the higher the better, the resolution of the computer is not required.

2. Maintain a good network

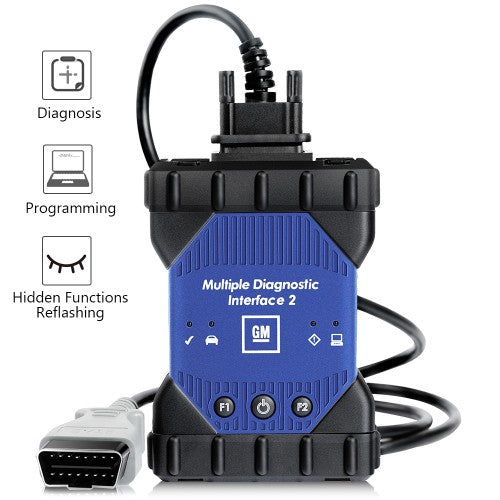

G-M MDI 2 Diagnostic Tool Functional Overview:

* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable/playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, airbag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass-thru ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions

G-M MDI 2 Product description:

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SG-M vehicles
Required for diagnostics on new SG-M Global A Electrical Architecture Vehicles
Used with TIS2Web, G-M Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic
G-M Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, G-M LAN, etc.
Needed for Global A architecture vehicles
Supports Service Programming System (SPS)
Passthrough programming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnostic System (GDS) application
Includes Flight Recorder Mode

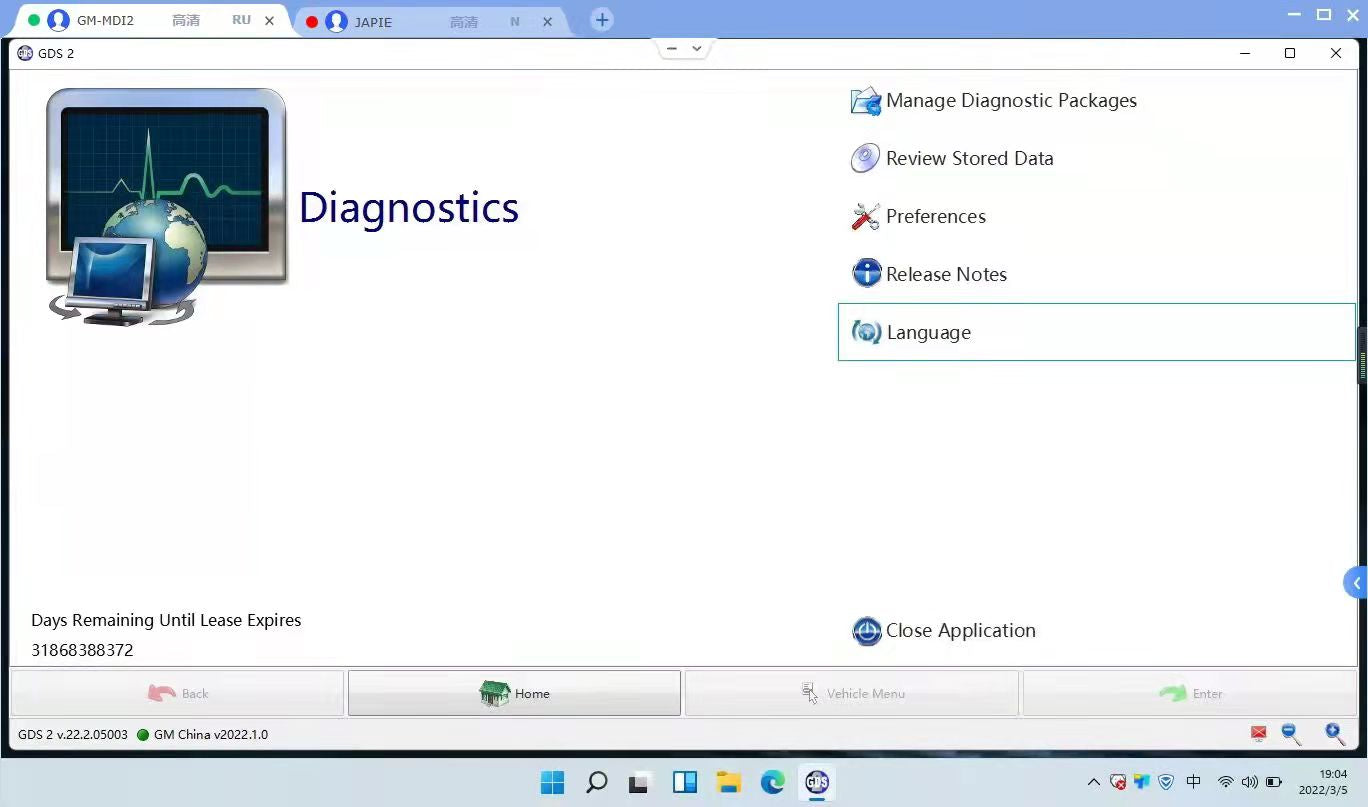

G-M MDI 2 Software Display:

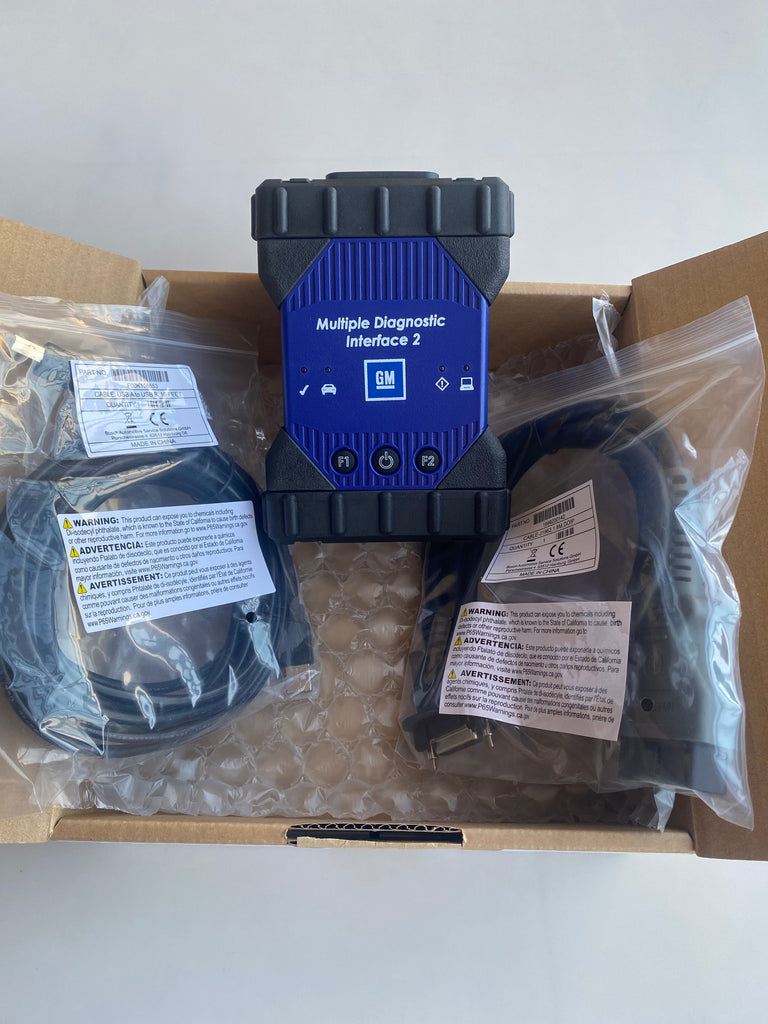

Package List:

1pc x G-M MDI 2

1pc x OBD CABLE

1pc x USB CABLE
