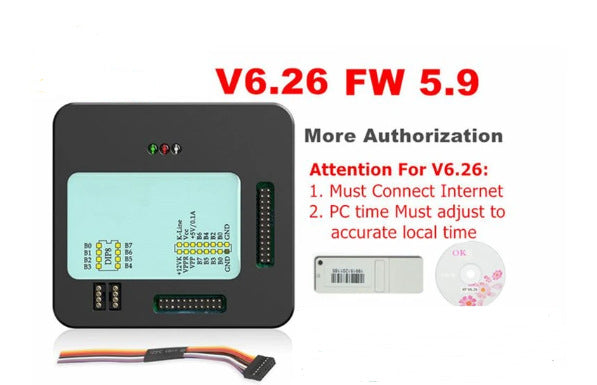

Latest Version XPROG M V6.26 Box ECU Programmer X-PROG M Support MCU

Install Notice:

Please windows system required as below:

1. Windows system should be windows XP 32bit OR windows 7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well...

2. The windows system should be with at lest 2 partitions (except the CD ROM.)

3. Can not be working with virtual harddisk.


Install manuals in words:

1. Click the file "installation.reg", get the file information to the regedit.

2. Install the file "AdbeRdr11000_zh_CN.exe", it is a must, otherwise the Xprog software will not start.

3. Plug the Xprog main interface to the computer, install the USB driver.

4. Copy the folder "XPROG-BOX6.12" to the desktop, and open it, and run the "xprogdesktop.exe", then software open.


XPROG V6.26 Authorizations:


AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13

AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

AUTH-0028-1 Renesas V850 Authorized 2017/10/9

AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

AUTH-0028-3 Renesas RL78 Authorized  ---New!

AUTH-0028-4 Renesas M32C Authorized ---New!

XPROG-M V6.12 Adapters:
ADP-0019 Rev.B ----New!
ADP-0006 M35080 ICP adapter ---New!
QFP64 MC908AZ/AS60 3K85K adapter ---New!
QO18S714 ---New!

ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash

ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

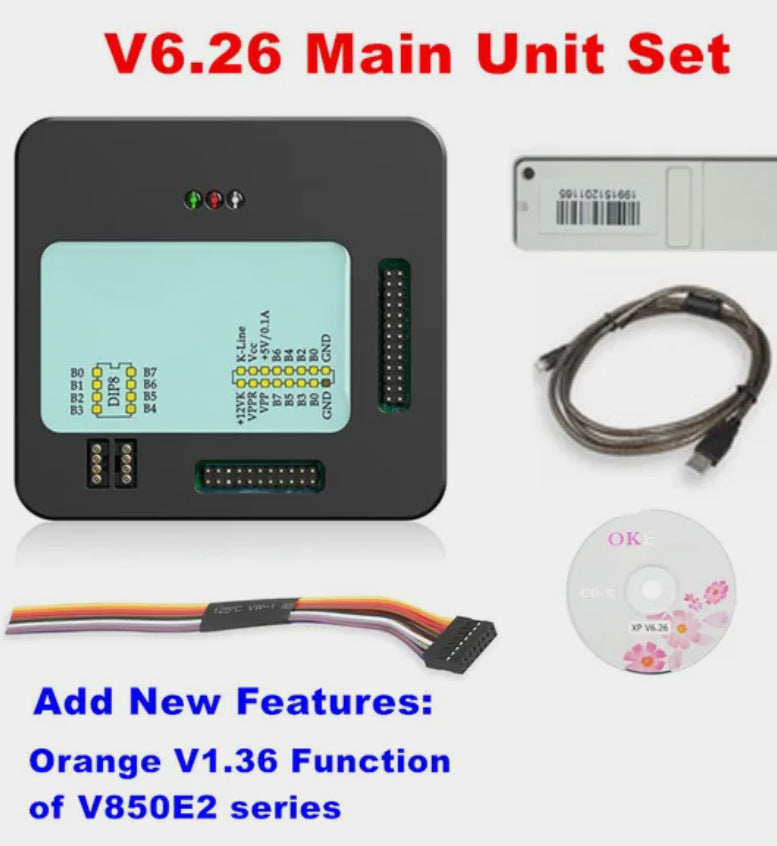

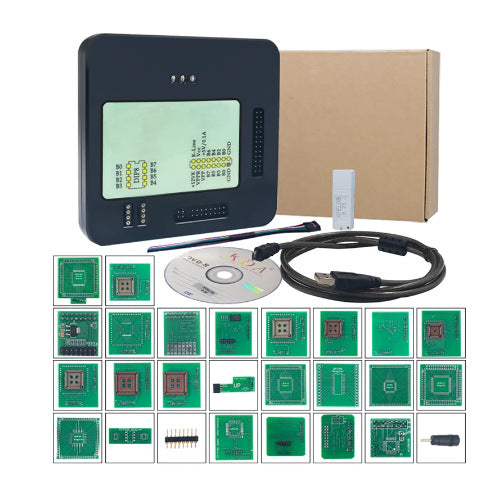

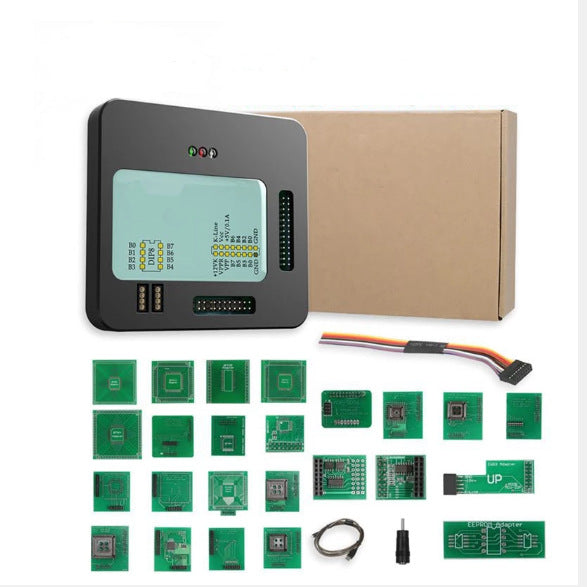

Package Includes

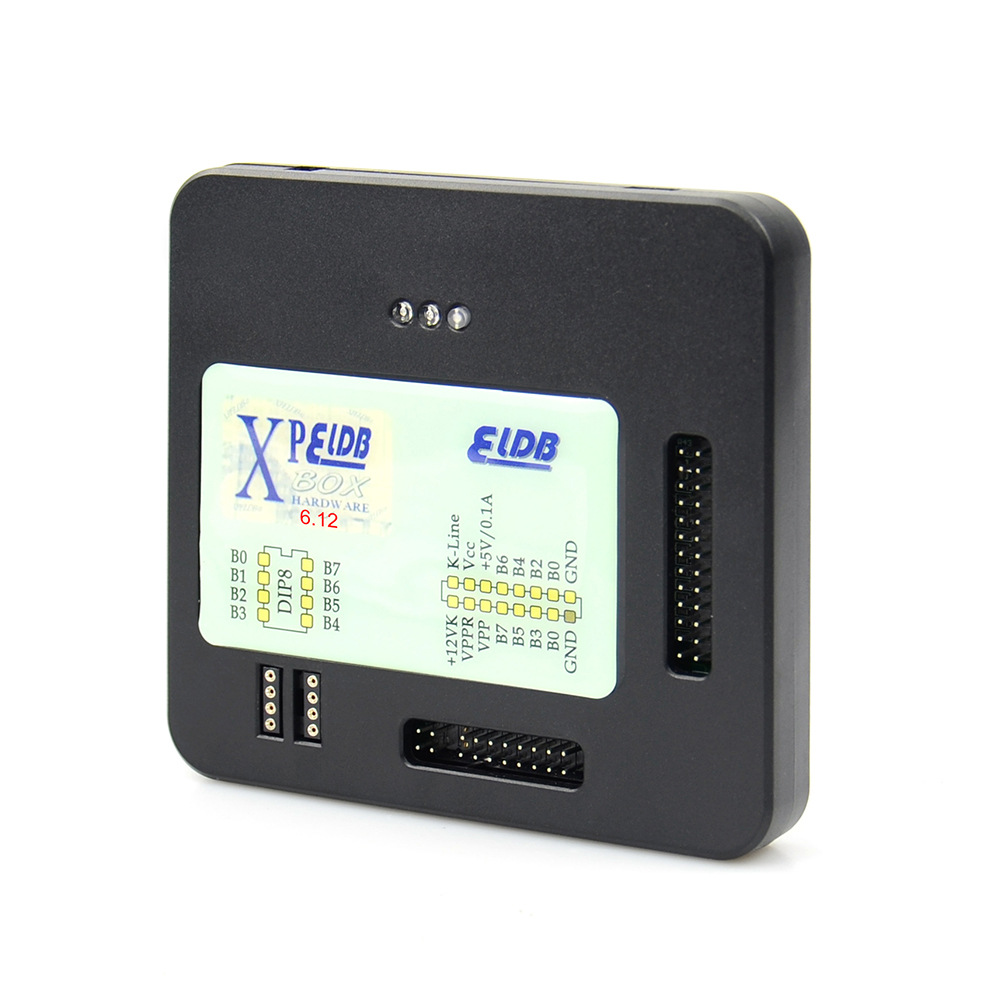

1pc  x  XPROG-Box Hardware (Aluminum Enclosure)

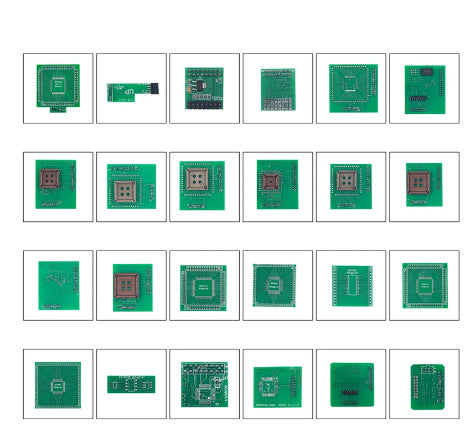

24pc x  Adapters Set
1pc  x  USB Cable
1pc  x 16Pin cable
1pc  x  CD with XPROG-Box Software (V6.26)
