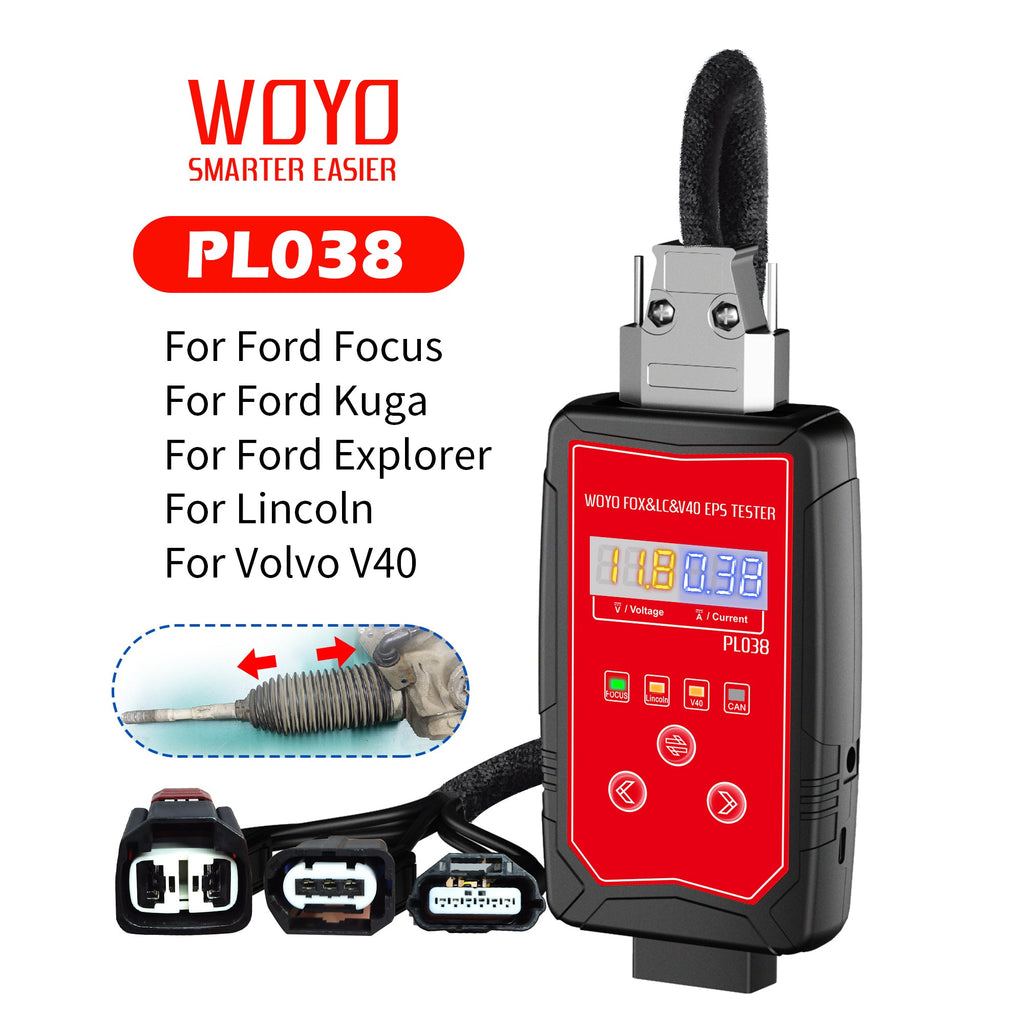

Iron Shell Electric Power Steering Wheel Motor EPS Tester For Ford Focus, Kuga, Explorer, Lincoln, Vol-vo V40 Automotive Diagnostic tool

EPS Motor Device Driver Tester Description:

For Ford Focus, Kuga, Explorer, Lincoln, Volvo V40
Only Iron Shell EPS
Simulate Torque Sensor to Activate CAN

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

Test on bench, useful tool for workshop:

PL008/PL018/PL028/PL038 can easy to simulate torque sensor to drive EPS motor.

Support Model:

For Ford Focus
For Ford Kuga
For Ford Explorer
For Lincoln
For Volvo V40

Note:  Only suit for Iron Shell Steering Wheel Motor.

Support Function:

"Drive + Diagnosis Data + Flash Firmware(Update Software)"
It Also can test the Torque Sensor,when you connect to the diagnostic scanner, you can read the data about Torque Sensor.

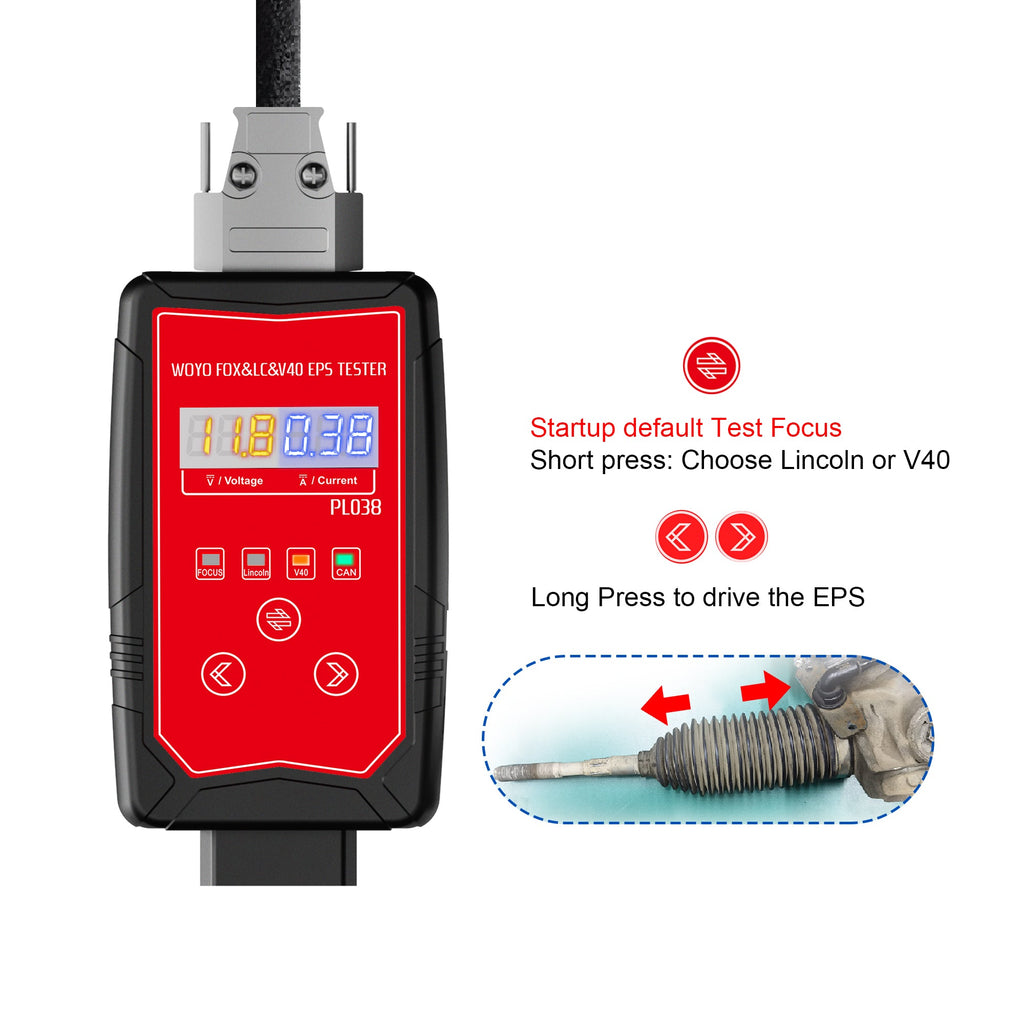

Switch : Select the model you want to test.   ("FOCUS" "Linc""V40")Due to the protection of the original factory for the computer board of the Wheel Steering Motor.   When the Wheel Steering Motor cannot be adjusted to retract or rotate during testing, please press the "reset button" to reset the computer board.

"<" ">": Retract or Rotate the Wheel Steering Motor.

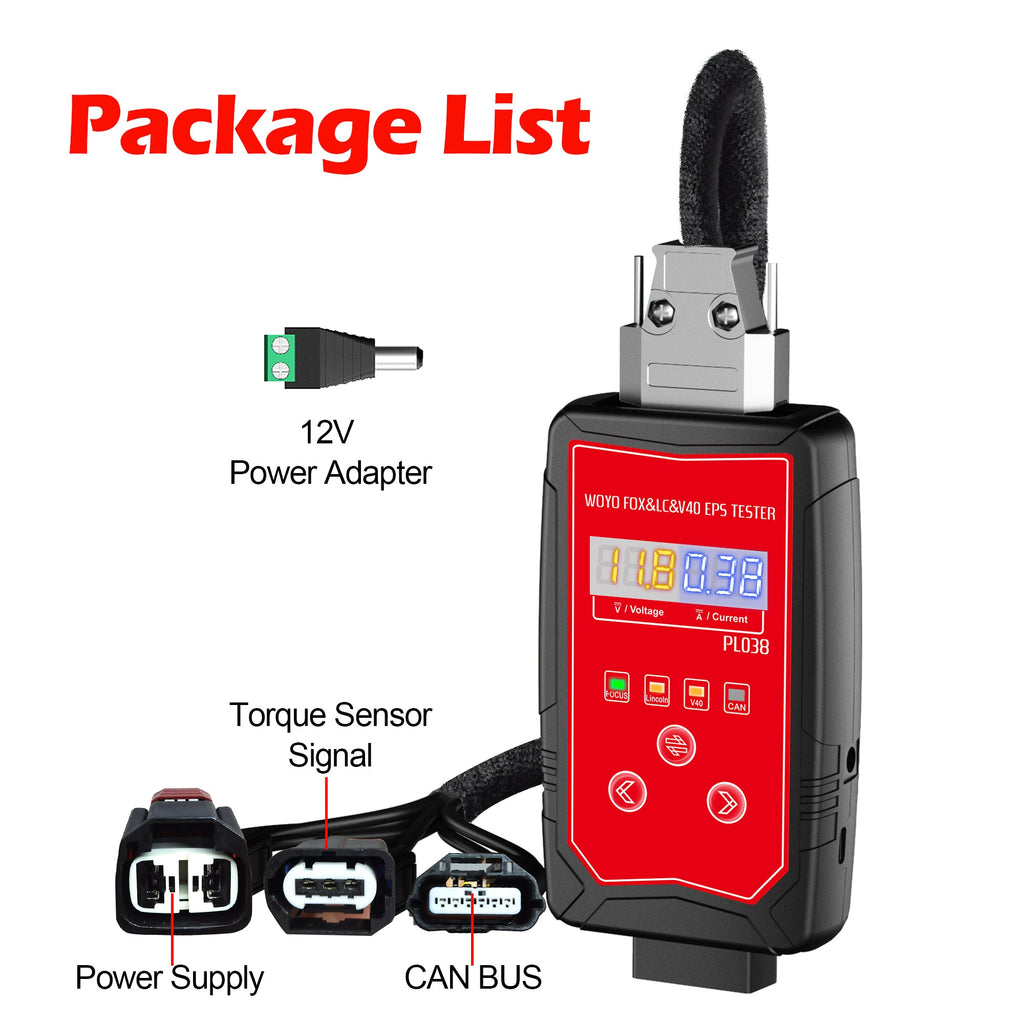

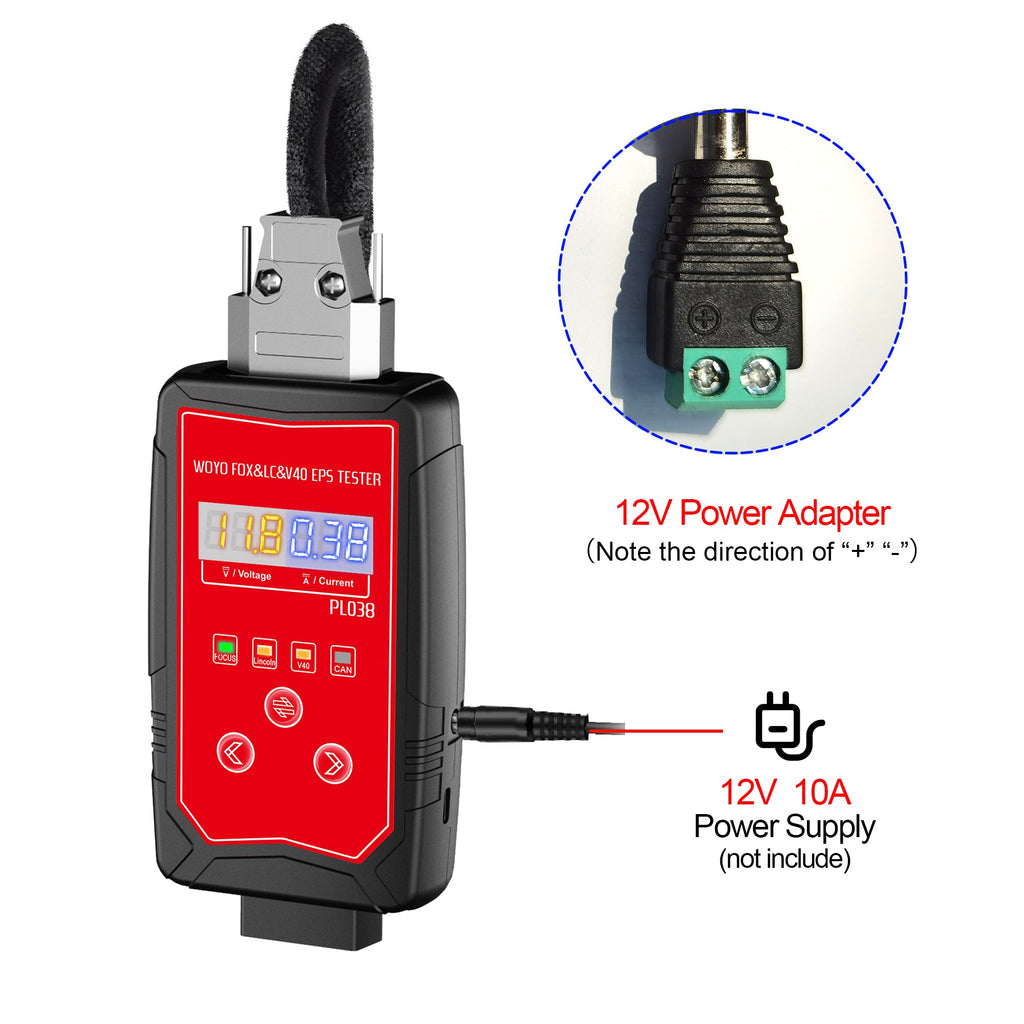

Power supply:12V 10A, we don't send with this cable.

Screen:Show work voltage or current of the tester.

Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.
