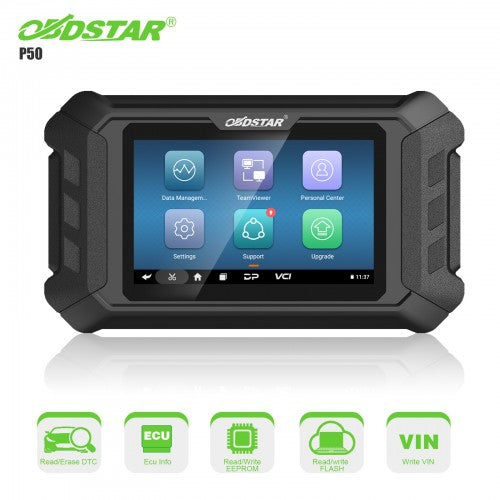

OBDSTAR P50 V30.43 Airbag Reset Tool For 58 Brands and 7600 ECU



Description

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 58 brands and over 7600+ ECU part No., some MCU. OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.





1. Support one-click airbag reset for 58 brands and over 7600+ECU part No.

2. Support fuzzy search for ECU part No.

3. Contain clear BENCH mode wiring diagram

4. Contain powerful and complete description files for fault code
5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.



Notice:
1. Language: English Only.
2. If you also need Cluster Calibration & Oil Light/ Service Reset Function, you can buy the OBDSTAR P50 Authorization to get the same function as the Odo Master


All by OBD or BENCH

ECU Info.

Read DTC

Erase DTC

Read EEPROM

Write EEPROM

Read FLASH

Write FLASH

Erase Crash

Write VIN

P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS communication at the same time;
4. Support GM Single CAN(GM SCAN);
5. Support K communication;
6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
7. DB15 connector can communicate with any OBDII-16 I/O interface.

P50 Airbag Reset Latest Update Information:

P50 Airbag Reset Upgrade
Add TOYOTA R7F7016443, R7F7016843 crash record erase and repair
(All by bench, need to use with CANFD Adapter)



P50 BATTERY RESET UPGRADE V30.06
Add AUDI BMS 8R0915233, 8R0915591 crash record erase and repair ( by BENCH )



P50 BATTERY RESET UPGRADE V30.00:
Add VOLVO MVBM(Medium Voltage Battery Module) erase crash records.



P50 Airbag Reset V30.43

Highlights Added：
Add 225 part numbers for the below models to support airbag reset:
Add AUDI 95128,TC27XX-64F 10 part numbers Airbag reset support;
Add BENZ 95640,SPC560P50 17 part numbers Airbag reset support;
Add BMW 9S12XET512 1 part number Airbag reset support;
Add CADILLAC  1 part number Airbag reset support;
Add CHERY R7F701009 1 part number Airbag reset support;
Add CHEVROLET XC2361A 5 part numbers Airbag reset support;
Add CHRYSLER 95128,95256 3 part numbers Airbag reset support;
Add DACIA R7F701XXX 1 part number Airbag reset support;
Add DODGE 95128,R7F701064 2 part numbers Airbag reset support;
Add FIAT 95256 1 part number Airbag reset support;
Add FORD 95160,95640,XC2XXX 7 part numbers Airbag reset support;
Add GEELY R7F7010093 4 part numbers Airbag reset support;
Add GREATWALL R7F701009 1 part number Airbag reset support;
Add HONDA 24C01,93C56,95320,95640,H8SX,H8SX1725,MPC5604,R7F701A223,SPC560P50,SPC56AP54,TC23XX32F 40 part numbers Airbag reset support;
Add HYUNDAI 95128,95256,95512,R7F7015803,TC23XX-32F,XC2361A 6 part numbers Airbag reset support;
Add INFINITI 95128 2 part numbers Airbag reset support;
Add JEEP 95256,95512 2 part numbers Airbag reset support;
Add KIA 95512,95640,R7F701019,R7F7015803,R7F701XXX,XC2361A 13 part numbers Airbag reset support;
Add MASERATI 95640 1 part number Airbag reset support;
Add MAZDA 95128 1 part number Airbag reset support;
Add MG R7F7010093 1 part number Airbag reset support;
Add MITSUBISHI 95128,TC22XX-16F 3 part numbers Airbag reset support;
Add NISSAN 95128,95640,TC22XX-16F 6 part numbers Airbag reset support;
Add OPEL  1 part number Airbag reset support;
Add RENAULT 95160,TC222S-16F 27 part numbers Airbag reset support;
Add ROEWE TC224L-16F 8 part numbers Airbag reset support;
Add SEAT TC22XX-16F 1 part number Airbag reset support;
Add SMART SPC560P50 2 part numbers Airbag reset support;
Add SSANGYONG SPC560P50L3 22 part numbers Airbag reset support;
Add SUBARU 95128,R7F7016863 3 part numbers Airbag reset support;
Add SUZUKI R7F7010123,R7F7010183,R7F701A383 6 part numbers Airbag reset support;
Add TESLA R7F701330 1 part number Airbag reset support;
Add TOYOTA H8SX172X,H8SX1797 11 part numbers Airbag reset support;
Add VW 95320,95640,CR16HCS9,CR16MCT9,TC234-32F,TC23XX-32F 14 part numbers Airbag reset support.

Details Optimized:
Optimized FORD R7F701A033 [Erase Crash] processes;
Optimized HYUNDAI/KIA 95128 [Erase Crash] processes;
Optimized RENAULT R7F701042 [Erase Crash] processes.

P50 Airbag Reset V30.42

Add 178 part numbers for the below models to support airbag repair:
Add AUDI 11KA4,95640,TC27XX-64F,95128 9 part numbers Airbag reset support;
Add BENZ 95128,SPC560P50 3 part numbers Airbag reset support;
Add BMW 9S12XET512 1 part number Airbag reset support;
Add CADILLAC  1 part number Airbag reset support;
Add CHERY R7F701009 1 part number Airbag reset support;
Add CHEVROLET 95160,95320,R7F7010693 13 part numbers Airbag reset support;
Add DODGE 95512 1 part number Airbag reset support;
Add FIAT R7F701064,95320,SPC560P50 3 part numbers Airbag reset support;
Add FORD 95160,XC2XXX 25 part numbers Airbag reset support;
AddHONDA95640,H8SX,R7F701686,TC23XX32F,R5F2154,SPC560P50,SPC56AP54,MPC5604 27 part numbers Airbag reset support;
Add HYUNDAI 9S12DT128,XC2361A,TC23XX-32F,95512,TC23XX-16F,95256,TC22XX-16F 24 part numbers Airbag reset support;
Add INFINITI 95128 4 part numbers Airbag reset support;
Add ISUZU XC2361A-56F,XC2361A-72F 4 part numbers Airbag reset support;
Add JEEP 95640,95512,95256 8 part numbers Airbag reset support;
Add KIA SPC560P50,R7F701019,95512 5 part numbers Airbag reset support;
Add MAZDA TC23XX-16F,95128 4 part numbers Airbag reset support;
Add MG R7F7010093 2 part numbers Airbag reset support;
Add MITSUBISHI 95128 2 part numbers Airbag reset support;
Add NISSAN 95320,95128,95640,TC22XX-16F 6 part numbers Airbag reset support;
Add RENAULT 95640,95160,R7F701XXX 6 part numbers Airbag reset support;
Add ROEWE TC224L-16F 7 part numbers Airbag reset support;
Add SEAT TC22XX-16F 2 part numbers Airbag reset support;
Add SMART SPC560P50 2 part numbers Airbag reset support;
Add SUBARU  1 part number Airbag reset support;
Add SUZUKI R7F701018 4 part numbers Airbag reset support;
Add TESLA 95320 1 part number Airbag reset support;
Add TOYOTA H8SX172X,H8SX1797 6 part numbers Airbag reset support;
Add VW TC23XX-32F,MPC5604P,SPC560P50 6 part numbers Airbag reset support.

Details Optimized:
Optimized HYUNDAI/KIA all types processes;
Optimized FIAT SPC560 [Erase Crash] processes;
Optimized GEELY R7F7010083/R7F7010093 [Erase Crash] processes;
Optimized MITSUBISHI TC22XX-16F [Erase Crash] processes;
Optimized VOLVO 9S12DG128 processes.

P50 Airbag Reset Update V30.39

Added airbag repair support for 136 part numbers of the following models:
Added ACURA (Acura) 95640, SPC56AP54 2 part numbers airbag repair support;
Added AUDI (Audi) TC27XX-64F 1 part number airbag repair support;
Added BENZ (Mercedes-Benz) 95640, SPC560P50, 95320 10 part numbers airbag repair support;
Added BMW (BMW) 95128 1 part number airbag repair support;
Added CHERY (Chery) R7F701009 1 part number airbag repair support;
Added 4 CHEVROLET (Chevrolet) airbag repair support;
Added CHRYSLER (Chrysler) 95256 1 part number airbag repair support;
Added DODGE (Dodge) 95128, 95256 2 part numbers airbag repair support;
Added FIAT (Fiat) 95320 1 part number airbag repair support;
Added FORD (Ford) R7F701A033 1 part number airbag repair support;
Added GEELY (Geely) R7F7010093 1 part number airbag repair support;
Added GREATWALL (Great Wall) XC2336A 1 part number airbag repair support;
Added HONDA (Honda) 95640, MPC5604, TC23XX32F, 95320 9 part numbers airbag repair support;
Added HYUNDAI (Modern) 95512, TC23XX-32F 2 part numbers airbag repair support;
Added JEEP (Jeep) 95512, 95256 3 part numbers airbag repair support;
Added KIA (Kia) 95128, 95512, XC2361A 4 part numbers airbag repair support;
Added airbag repair support for 3 OPEL 9S12DG128E part numbers;
Added PORSCHE (Porsche) TC27XX-64F 1 part number airbag repair support;
Added RENAULT (Renault) 95160, R7F701XXX 74 part numbers airbag repair support;
Added airbag repair support for 3 part numbers of ROEWE TC224L-16F;
Added SUBARU (Subaru) 95640, H8SX1725, R7F7010643 4 part numbers airbag repair support;
Added TOYOTA (Toyota) H8SX1797 2 part numbers airbag repair support;
Added VOLVO (Volvo) R7F701330 1 part number airbag repair support;
Added VW (Volkswagen) TC23XX-32F, MPC5604P, SPC560P50 4 part numbers airbag repair support

P50 Airbag Reset Upgrade V30.33




OBDSTAR P50 Vehicle Coverage



1. Supported Brands(51 Brands)
ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAOJUN, BENZ, BMW, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD, GMC, GREATWALL, HONDA, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LADA, LAMBORGINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SEAT, SKODA, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW

2. Over 7600+ ECU part No.(supporting fuzzy search)

3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...



OBDSTAR P50 Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃(14℉  ~  131℉)
Storage temperature	-20℃  ~  70℃(-4℉  ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

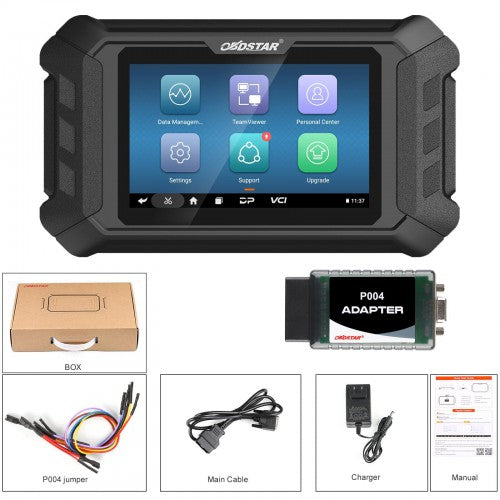

1pc x P50 Main Unit

1pc x Main Cable

1pc x P004 Adapter

1pc x P004 Jumper

1pc x 12V2A Charger
