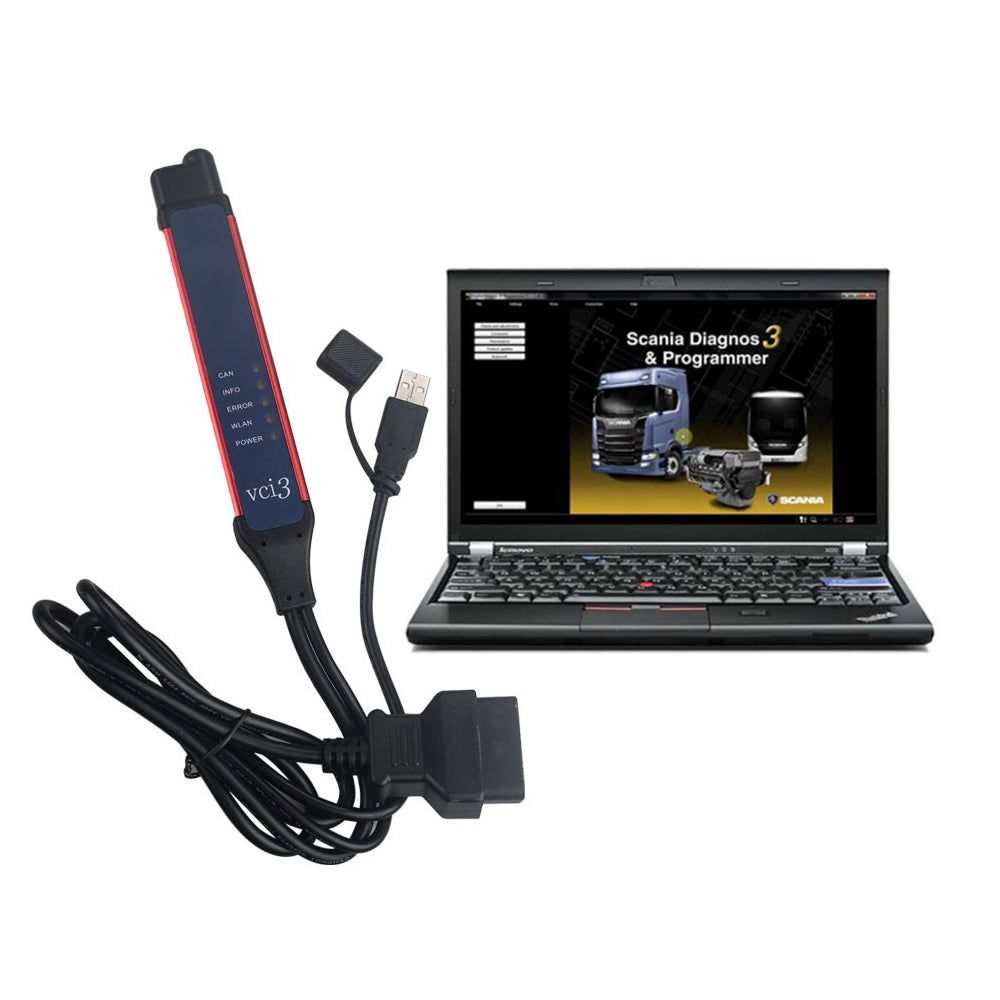

Scania VCI3 Diagnostic Tool Plus Lenovo X220 Laptop With Scania SDP3 2.61.1.5.0 latest Software Installed Ready to Use

The software have installed on Lenovo X220 Laptop,You can use it directly after you receive it.

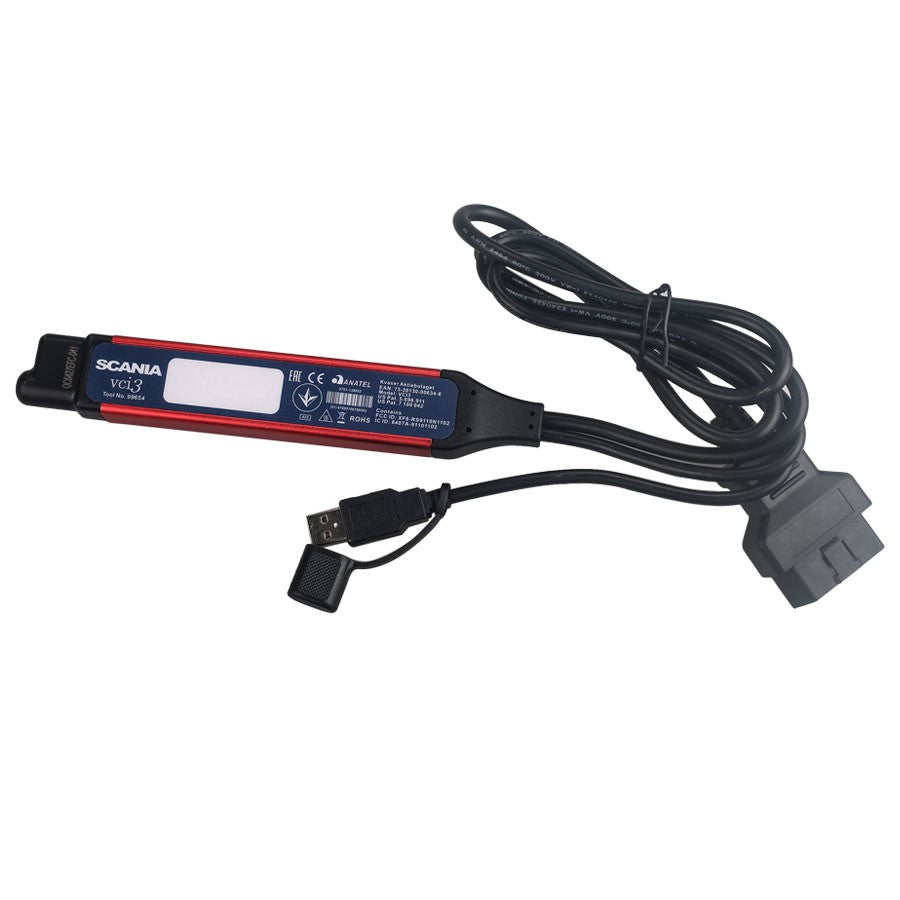

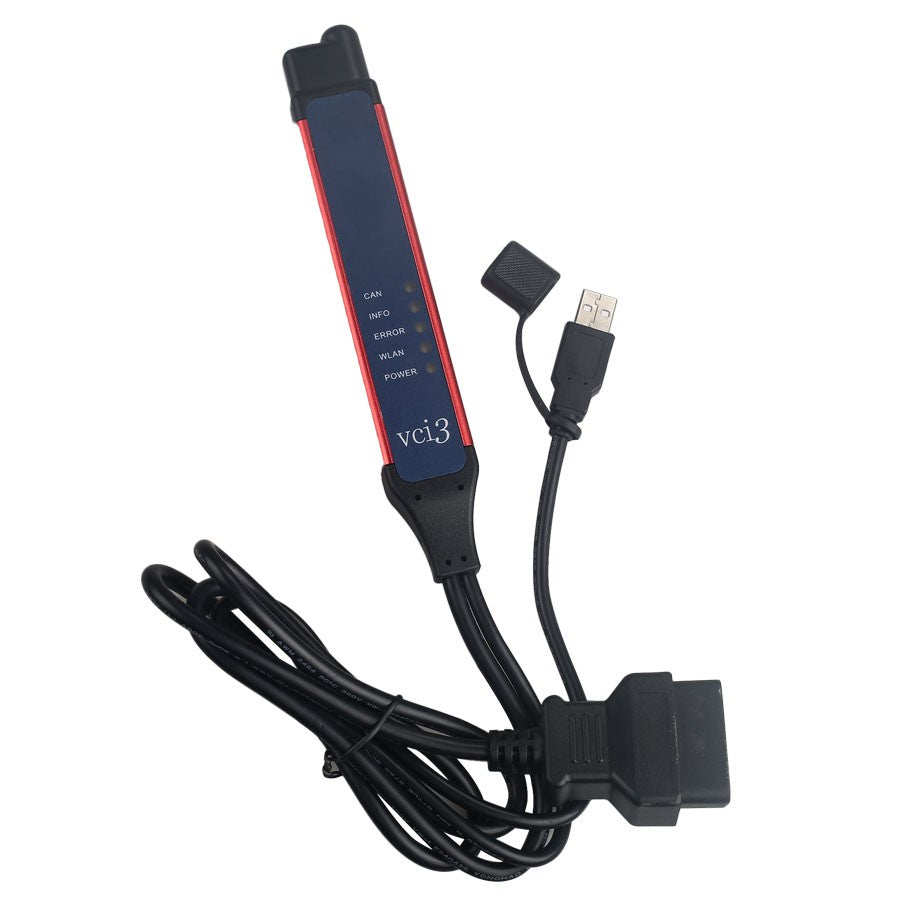

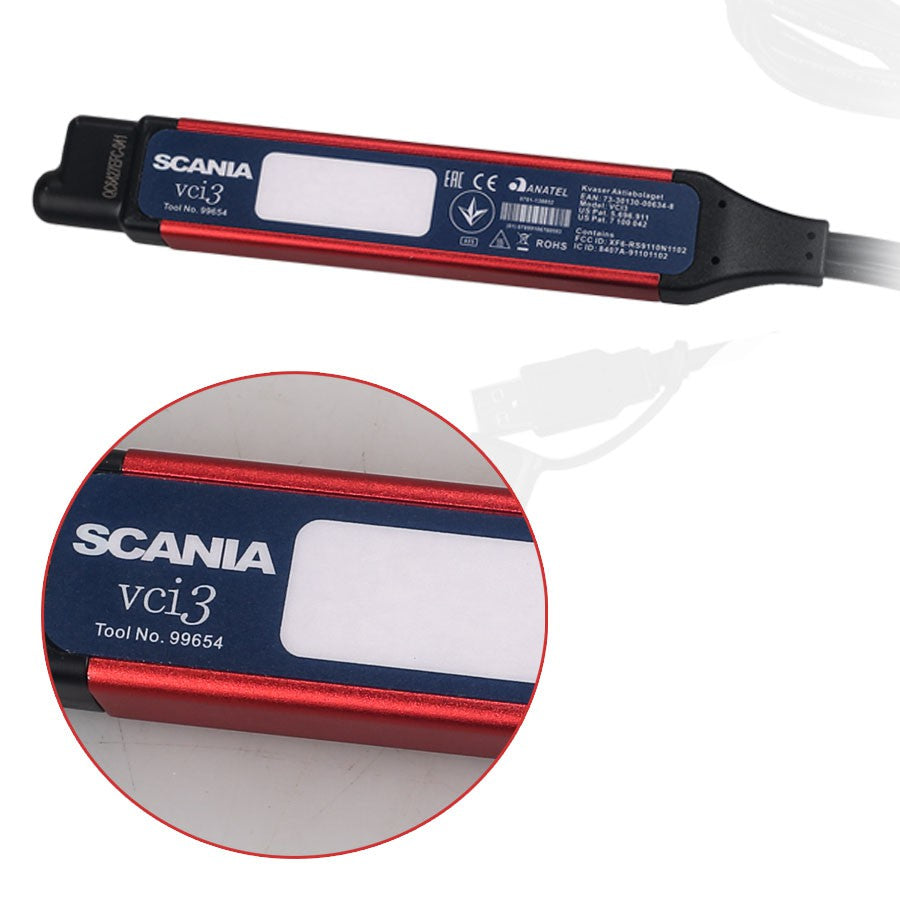

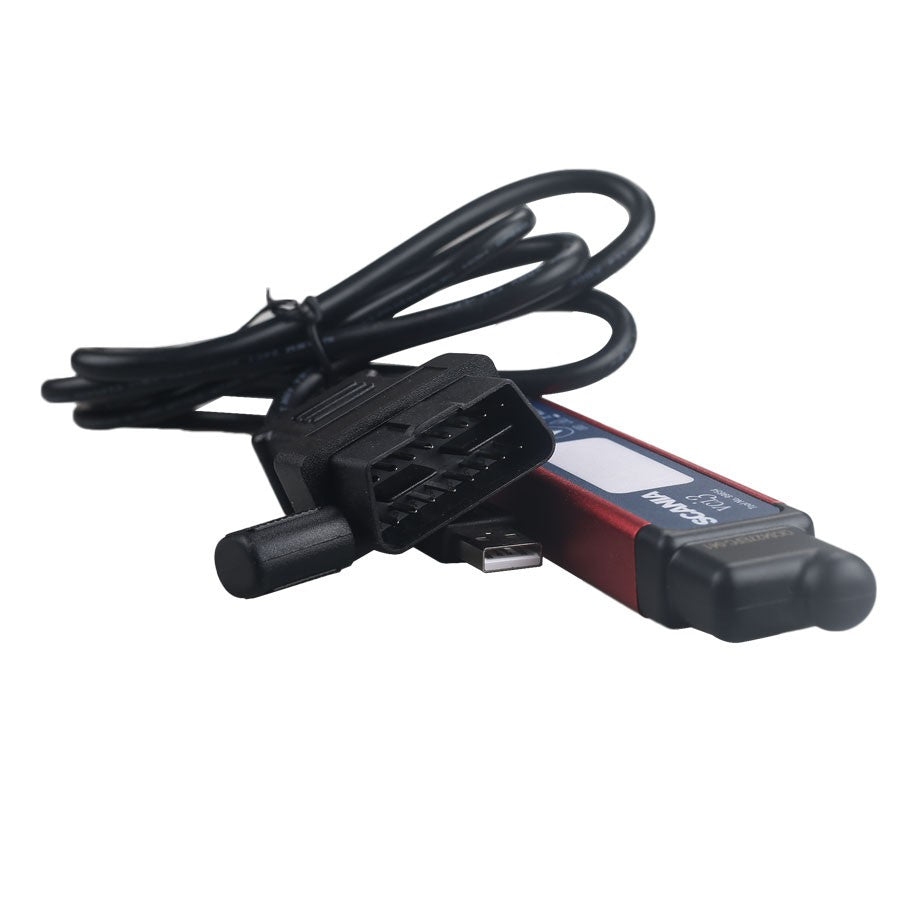

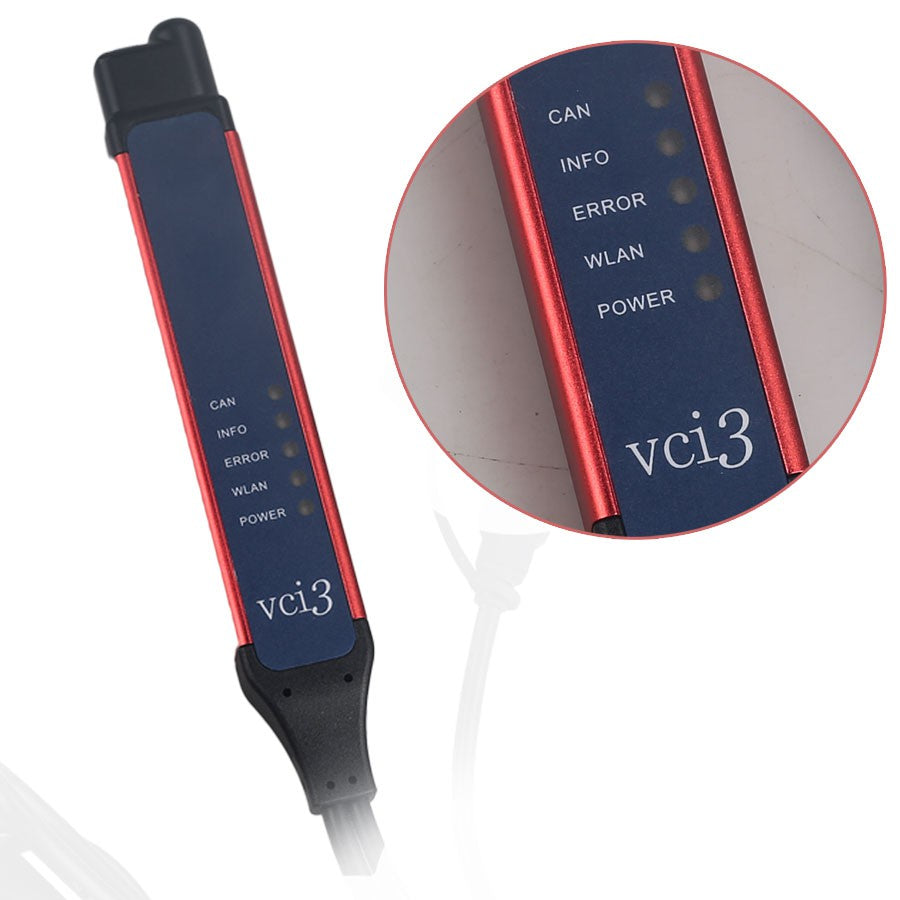

Scania VCI3 comes with V2.53.5/V2.61.1.5.0 of SDP3. Scania VCI3 is a brand new tool designed by Scania to provide full maintenance for all Scania trucks, buses and other heavy vehicles or heavy duty engines made by Scania.VCI3 is a successor of well known diagnostic tool Scania VCI2.




Notice:
The adapter does not work with trucks and engines manufactured before 2004

Top 5 Reasons to Get Scania VCI3:
1. Latest Version: V2.53.5/V2.61.1.5.0
We have installation video on our website too. After you finish, pass us Sdp3 HWID for activation. (Including one time free activation only)
2. Support All Scania Trucks, Buses and other Heavy Vehicles or Heavy Duty Engines Made by Scania
3. Wifi Available
4. Support Languages: English, German, Spanish, French, Japanese, Dutch, Polish, Portuguese, Swedish, Norwegian, Suomi, Turkish, Italian, Czech, Russian, Korean and Chinese
5. Updatable (Buy New Software)



SCANIA VCI3 Description
1. Scania VCI3 is designed to support all Scania diagnostic systems based on CAN network, it's a extremely fast yet very compact diagnostic tool.
2. One of the most interesting new features that can be found in Scania VCI3 is a Wifi wireless connection (also there is a USB connector for wired connection).
3. From now you can work without wired connection to your truck, just forget these problems like damaged data cables and other disadvantages of wired connections.
4. Software support for Scania VCI3 appeared in Scania SDP3 2.18 version so if you want to use this tool you need this version of SDP3 or later versions of this software.
5. The device is designed for full service trucks, buses and other heavy vehicles, which produces the corporation SCANIA. Adapter works in conjunction with software SDP-3.
6. The adapter does not work with trucks and engines manufactured before 2004.
7. The main feature of VCI-3 - Work through a high-speed WI-FI connection. Also in the device has a USB port.

SCANIA VCI3 Feature
1. WLAN version 802.11b/g
2. Encryption protocols: WPA2/WPA/WEP128/WEP64
3. USB 2.0 (compatible with USB 1.1)
4. Lightweight aluminum housing with IP67 protection
5. Polyurethane cables for extreme conditions.
6. Operating voltage CAN BUS (7 - 40V DC)

SOPS EDITOR INCLUDED
Download with SDP3 from truck SOPS export file;
Decrypt SOPS export file to XML format;
Edit XML file with any XML editor;
Modify more than 300 parameters: like AdBlue, EGR, NOx Control, see whole list;
Encrypt XML file to SOPS import file;
Upload SOPS import file to truck with SDP3;
Scania XCOM - is a diagnostic tool to read, save and modify ECU data such as trouble codes, parameters, statistic data etc. VCI2/VCI3 interface is used to connect to ECU via CAN protocol.

Supported modification of ECU data of the following type
EMS – Engine management system.
GMS – Gearbox management system.
RET – Retarder system.
AWD – All wheel drive system.
CLS – Clutch Control.
EEC – Exhaust Emission Control.
COO (COO7) – Coordinator.
BWS (BCI1) – Bodywork system.

Supported resolving trouble codes to text description for the following types:
EMS (S6, S7, S8).
GMS (OPC4, OPC5).
RET (RET1, RET2).
AWD (AWD1).
EEC (SCR1, EEC3).
COO (COO6, COO7).
HMS (HMS1).

Some interesting options:
AdBlue ON/OFF.
EGR ON/OFF.
Chassis ID/VIN Change.
Immobilizer ON/OFF.
Truck Power INCREASE.
ECU Recovery.
ECU Reset.
ECU Unlock.

Scania diagnostic software works with VCI 3 interface:
Highest level access
Internal Scania
Industry & Marine
Authorized Scania Workshops
Bodybuilder

About Spare Parts & Manuals Scania Multi 05.2024:
Data update: 05.2024
Version: 05.24
Region: All regions
Type: Parts catalog, manual, diagram
Language: English, Dutch, Spanish, Italian, German, French, Persian, Finnish, Russian, Thai, Turkish, Zwedish, Chinese, Czech, Japanese, Korean, Polish, Portuguese
Operating system: Windows10/11 64bit
Size: 20GB

Latest Software
V2024.50.00


All this information of Scania Multi.
Models List:
P, G, R, S truck series (2016-)
P, G, R, T seris truck (2003-)
4 truck series (1994-2008)
3 series truck (1987-1996)
F, K, N series bus (2004-)
4 truck series (1994-2010)
3 series truck (1987-1999)
E2011 (2010-)
P96 (1996-)
ALL

Scania Multi includes this information for Scania trucks:
General
Engine
Cooling System
Fuel and exhaust systems
Clutch
Gearbox
Propeller shaft
Front axle
Rear axle
Hubs and wheels
Brakes
Frame
Suspension
Steering
Engine controls
Electrical system
Instruments
Cab
Complementary equipment
Load carrying bodywork
Trailer
User functions
Irizar Bus body
Etc.

Package:

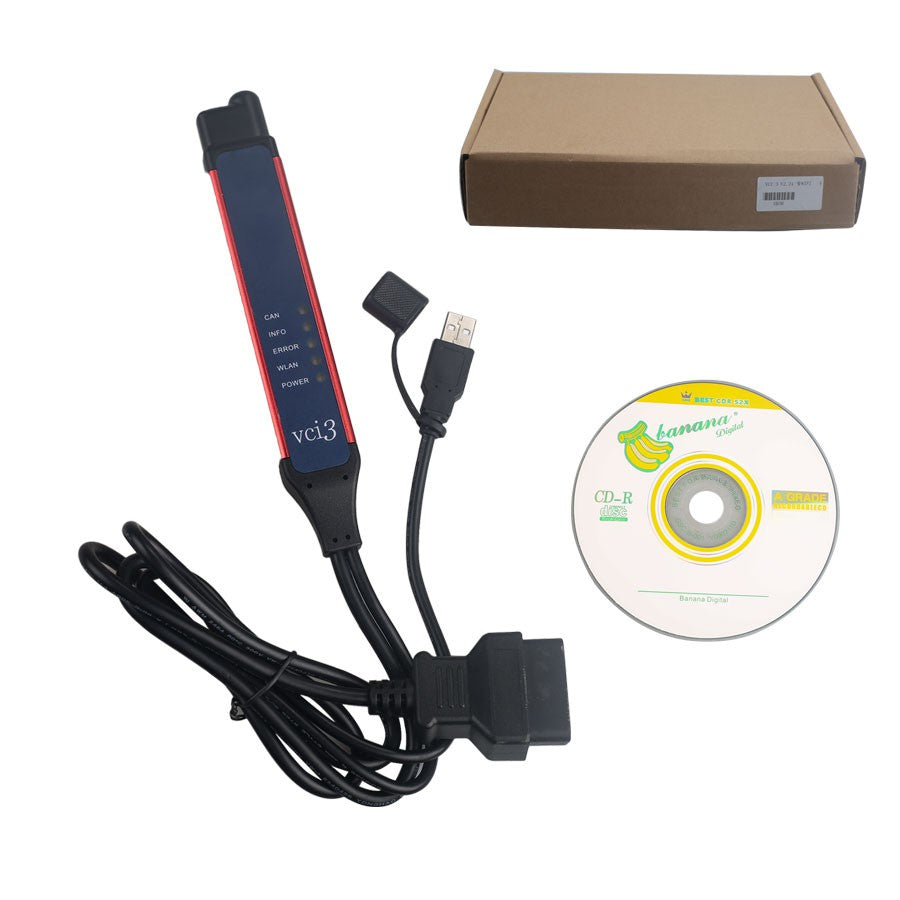

1pc x Scania VCI 3 adapter
1pc x Second hand Lenovo X220 Laptop with Scania SDP3 2.61.1.5.0 Latest Software + 2024.05 Scania Multi Spare Parts & Manuals or SDP3 2.61.1.5.0 latest software or SDP3 2.53.5 software (optional)

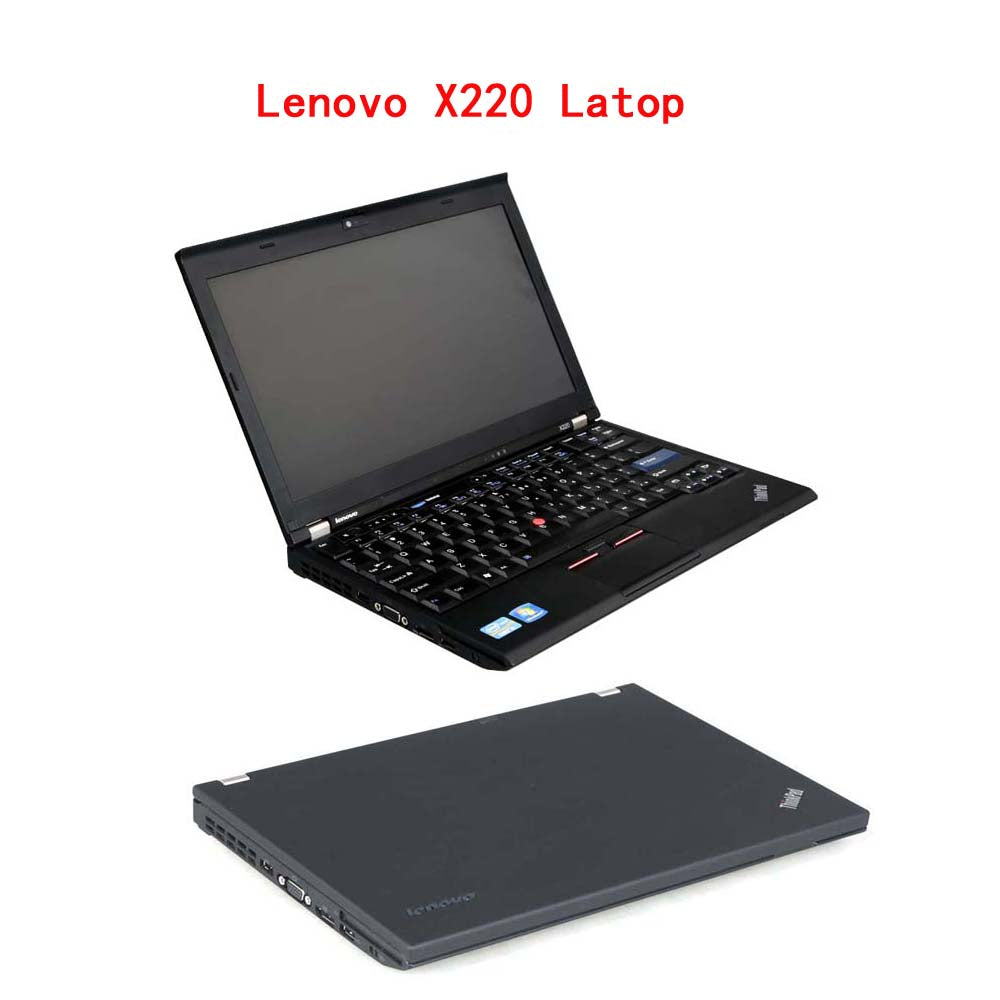

The Second Lenovo X220 Laptop:
Brand:  Lenovo
Screen Size:  12.0
Memory:  4GB
Memory (RAM):  Intel(R)Core(TM)I5 CPU
Type:  Laptop/Notebook
Condition:  Used
Primary Drive:  DVD+/-RW Processor Speed:  2.53GHz
