Thinkcar Thinktool mini Full System Diagnostic Tool

Thinkcar Thinktool Mini Professional Automotive Scanner OBD 2 Diagnostic Tool Engine SAS TPMS System 16 Special Function .

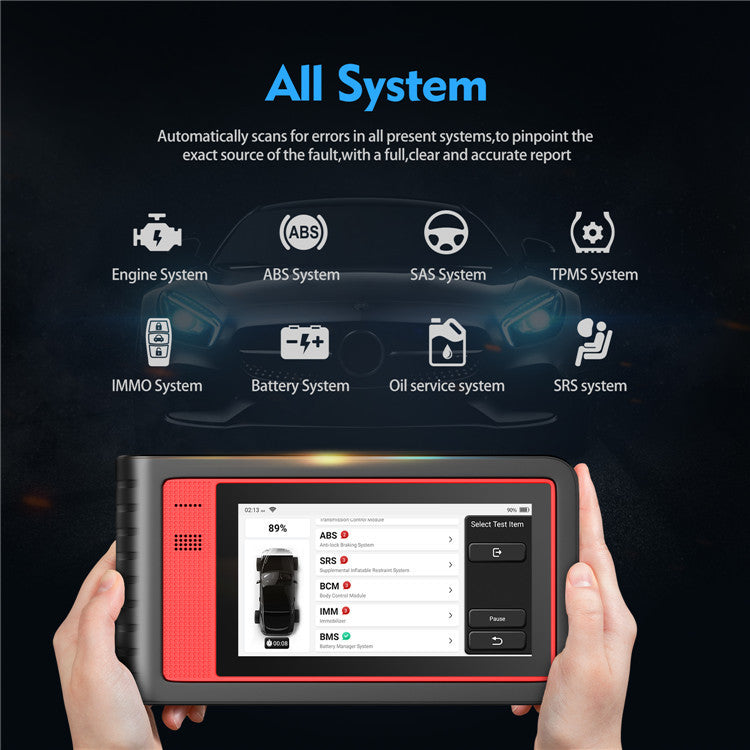

This option allows you to detect whether system parameters are normal. Includes: ABS system, engine system, SAS system, TPMS system, IMMO system, battery system, oil service system, SRS system, DPF system, air conditioning system, transmission system,... Read and erase codes of all available systems , turn off the MIL indicator light (indicator light), display real-time data in text, graphics and simulation form for easy viewing of data.

Thinktool mini supports OBD II (on-board diagnostics) protocol.

Mode 01 - Requests current powertrain diagnostic data.

Mode 02 - Request freeze frame information.

Mode 03 - Requesting emissions-related diagnostic codes

Mode 04 - Clear/reset emissions related diagnostic information.

Mode 05 - Requests the oxygen sensor to monitor test results.

Mode 06 - Requests airborne surveillance test results for a specific surveillance system.

Mode 07 - Requests emissions-related diagnostic trouble codes detected during the current or last completed drive cycle

Mode 08 - Request to control an onboard system, test or component.

Mode 09 - Request vehicle information. Mode 0A - Requests emissions-related diagnostic trouble codes with permanent status after clearing/resetting emissions-related diagnostic information.

Thinktool mini 16 special service features

Thinktool Mini supports 16 commonly used special reset functions, allowing you to quickly access vehicle systems for various scheduled services, maintenance and reset performance, eliminating the need to reset your car after solving common problems. Listed are some commonly used special reset services for your reference:

1. Engine oil light reset service After changing the engine oil, you can perform a reset to recalculate the engine oil life system.

2.EPB electronic parking brake reset is very important for maintaining the safety and efficiency of the electronic braking system.

3.BAT Battery Service allows the scan tool to evaluate the battery state of charge, monitor closed-circuit current, register battery replacement and activate the vehicle's stationary state.
4.DPF diesel particulate filter reset is especially suitable for diesel particulate filter systems with DPF regeneration, diesel engine parts replacement teaching and DPF teaching after diesel engine controller replacement.

5.SAS Steering Angel Sensor Reset helps clear the memory of the faulty steering angle sensor and plays an important role in the calibration of the steering angle sensor.

6. TPMS tire pressure monitoring system reset is very meaningful in displaying the sensor ID from the vehicle ECU, entering the TPMS sensor replacement ID and testing the sensor.

7. IMMO Key Programming Unique car key programming and reading password code functions, mainly used to disable lost car keys and program new replacement key fobs.

8.ABS After repairing the ABS pump system, bleed and drain the ABS brake fluid to obtain solid brake pads.

9. Reset the sunroof. When there is a communication problem or replacement of the sunroof control unit, the sunroof needs to be reset.

10. Suspension Reset Try resetting the electronic suspension air by massaging the system, close all doors, koeo flip through the message system to go to Suspension Reset or Off.

11. Gearbox (gearbox) reset program reset transmission adaptive learning DIY. Start the car and drive. Once this process is performed, the Engine Control Unit (ECU) and Transmission Control Unit (TCU) work together to learn how to drive by monitoring driving patterns. Drive the car according to this programming method of TCU/ECU.

12.AFS Headlight Reset "AFS" stands for Adaptive Front Lighting System (bi-xenon headlights used at night), which can be rotated on either side, pressing the button means they remain pointing forward and do not rotate when turning the steering wheel .

13. Injector coding Even if the injector is disabled, injector leaks and certain crashes may be missed. Other problems with the ignition system and mechanical components may also not show a loss of rpm when the injectors are turned off.

14. Throttle Valve Adaptation The throttle body is a tube containing a rotatable flat valve (butterfly) that controls the amount of air entering the engine. In cars with electronic fuel injection, the throttle position sensor and airflow sensor communicate with a computer that delivers the corresponding amount of fuel required at the injector. After clearing or repairing, the throttle sensor position must be relearned.

15. Gear Learning The scan tool monitors certain camshaft position sensor signals to determine if all conditions are met to continue the engine operating sequence.

16.EGR reset reduces nitrogen oxides (NOx) in the exhaust gas and improves fuel economy under part load.
