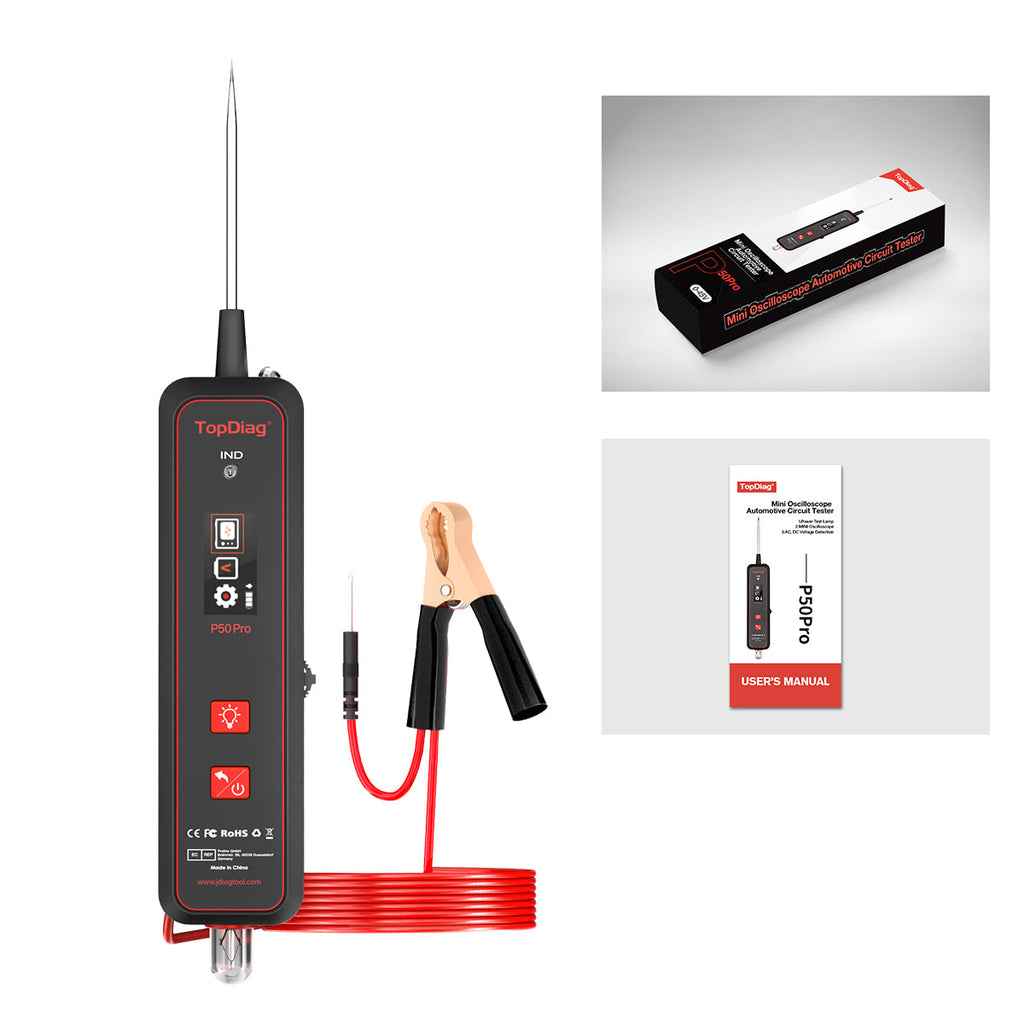

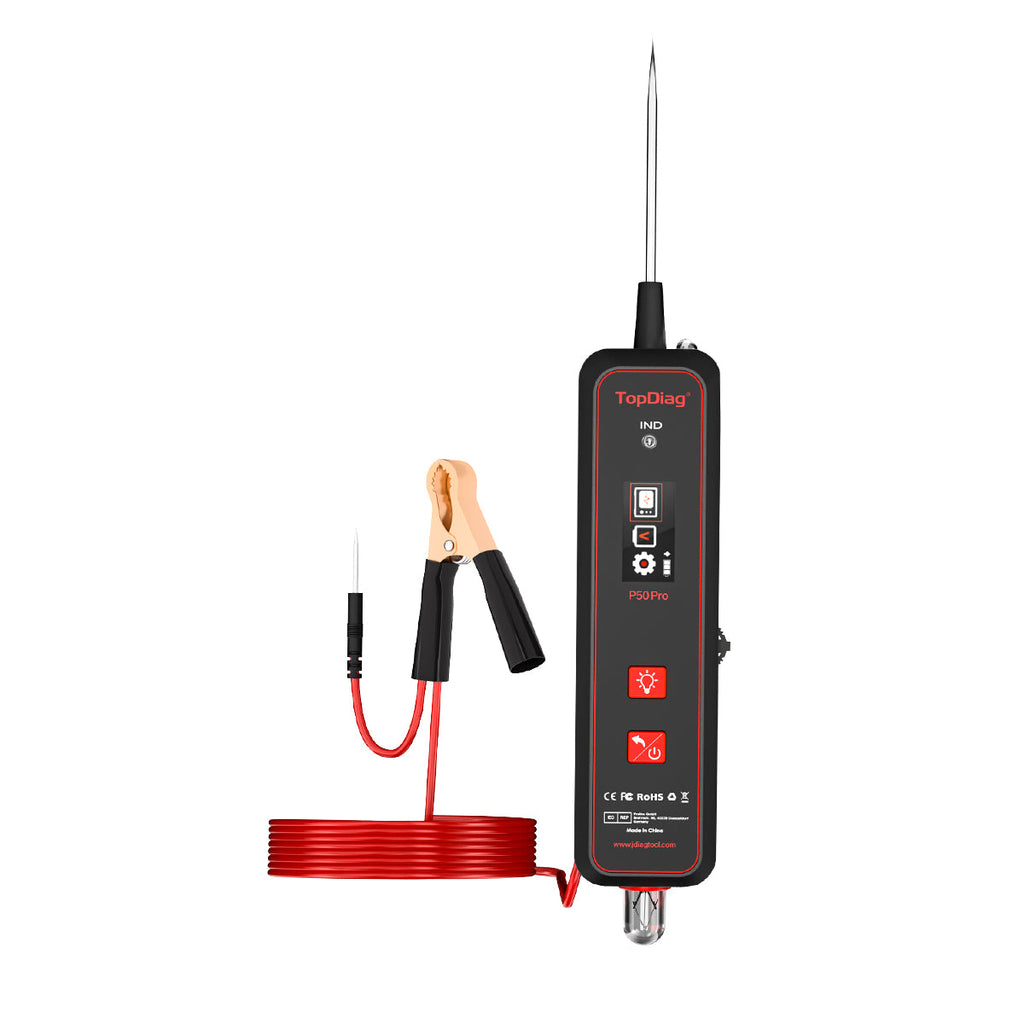

TopDiag MINI circuit tester AC/DC detection multi-function lamp test oscilloscope car tester

TopDiag P50 pro Description:

P50pro multifunctional MINI oscilloscope automotive circuit tester is suitable for diagnosis of circuit systems in all vehicles.

It is the best electrical tester for 0-45V circuit system detection and repair. It is simple to operate and has wide practicability.

This tool can quickly detect various communication line signals, sensor signals, as well as various test lamp tests and voltage tests.

TopDiag P50 pro Functions:

MINI oscilloscope, power test lamp, LED test lamp, DC detection, AC detection, flashlight.

What can TopDiag P50 do?

Singal Testing, DC Voltage Detection, Power Test Lamp, LED Test Light

TopDiag P50 pro Parameters:

Working current: 40ma
Battery capacity: 200ma
Battery life: about 4-5 hours
Frequency bandwidth:10Hz-100KHz
Test lamp power: 12V/247 power 5W
Display: TFT color screen display (80*RGB*160)
