Yanhua Mini ACDP ACDP-2 Module 36 for ZF-TC1782/ TC275/ Vodu36TC277 Gearbox Clone
Yanhua Tech newly releases Yanhua ACDP Module 36 to work with Mini ACDP/ACDP2 for BMW, JLR, Porsche, and Mercedes-Benz ZF-TC1782/TC275/TC277 gearbox clone. No need to solder.
Yanhua Module 36 Functions: The ZF-TC1782/TC275/TC277 Gearbox Clone Module offers the following functionalities:
B.MW: Supports 3rd generation 8HP (TC275/TC277) gearbox cloning.
JLR (J.aguar L.and R.over): Supports 3rd generation 8HP (TC275) gearbox cloning.
JLR 9HP50: Supports gearbox cloning for TC275.
JLR, Honda, Jeep, Chrysler: Supports 9HP48 (TC1782) gearbox cloning.
P.orsche: Supports 8DT/PDK2-TC400 (TC275) gearbox cloning.
M.ercedes-Benz: Supports VGS3-FDCT (TC275) gearbox cloning.
1.BMW - 8HP Gen3 (TC275/TC277)
Operation path:
BMW>> EGS>> 8HP_GEN3 Clone (ZF TC275/TC277)>> Identify>> Full backup data>> Full write data
Connection:

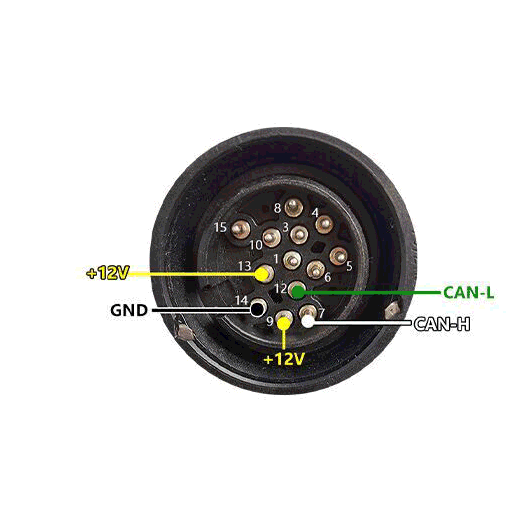

Connect Module 36 BMW-8HP Gen3 (TC275/TC277) Interface Board to BMW gearbox, and connect to Yanhua ACDP 2 correctly
2.JLR - 8HP Gen3 (TC275)
Operation path:
JLR>> Gearbox Clone>> 8HP_ GEN3 (ZF TC275)/9HP50 (ZF TC275)/ 9HP48 (ZF TC1782) >> Identify>> Full backup data>> Full write
3.Porsche - 8DT/PDK2-TC400 (TC275)
Operation path:
Porsche>> Gearbox Clone>> PDK2-TC400 (ZF TC275) >> Identify>> Full backup data>> Full write
4.Mercedes-Benz - VGS3-FDCT (TC275)
Operation path:
Benz>> Gearbox clone/refresh>> A Class/ B Class/ CLA Class/ GLA Class / GLB Class >> VGS3-FDCT (TC275) >> Identify>> Full backup data>> Full write
