LAUNCH EM101N EV Scopebox 2 Channel Oscilloscope Multimeter Hybrid 2025
2
sold in last
8
hours
customers are viewing this product
Launch EM101 is an innovative dual tool that combines the functionality of an oscilloscope and a multimeter in a single unit.
Launch EM101 ideal for measuring current, voltage and resistance in vehicles with high-voltage batteries.
Note :presell,the estimated delivery time for placing order is 50 days

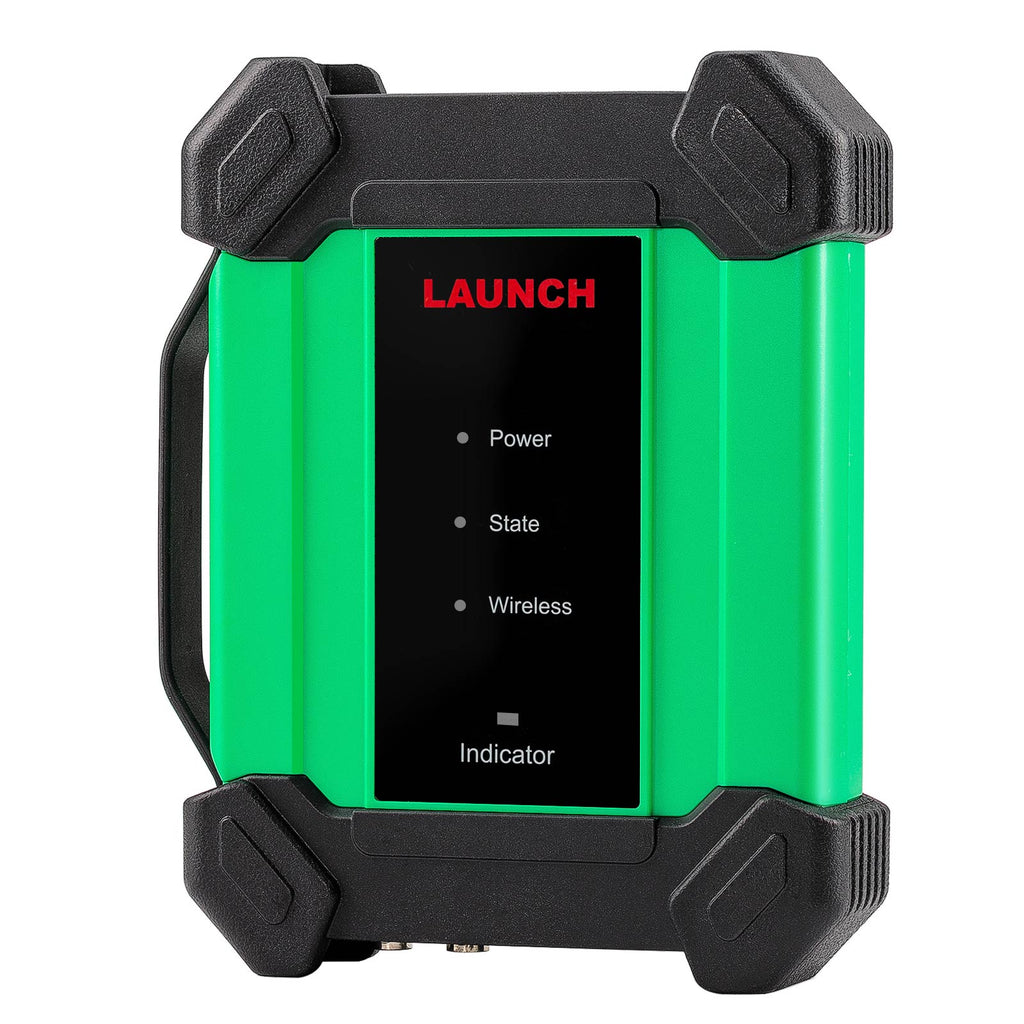

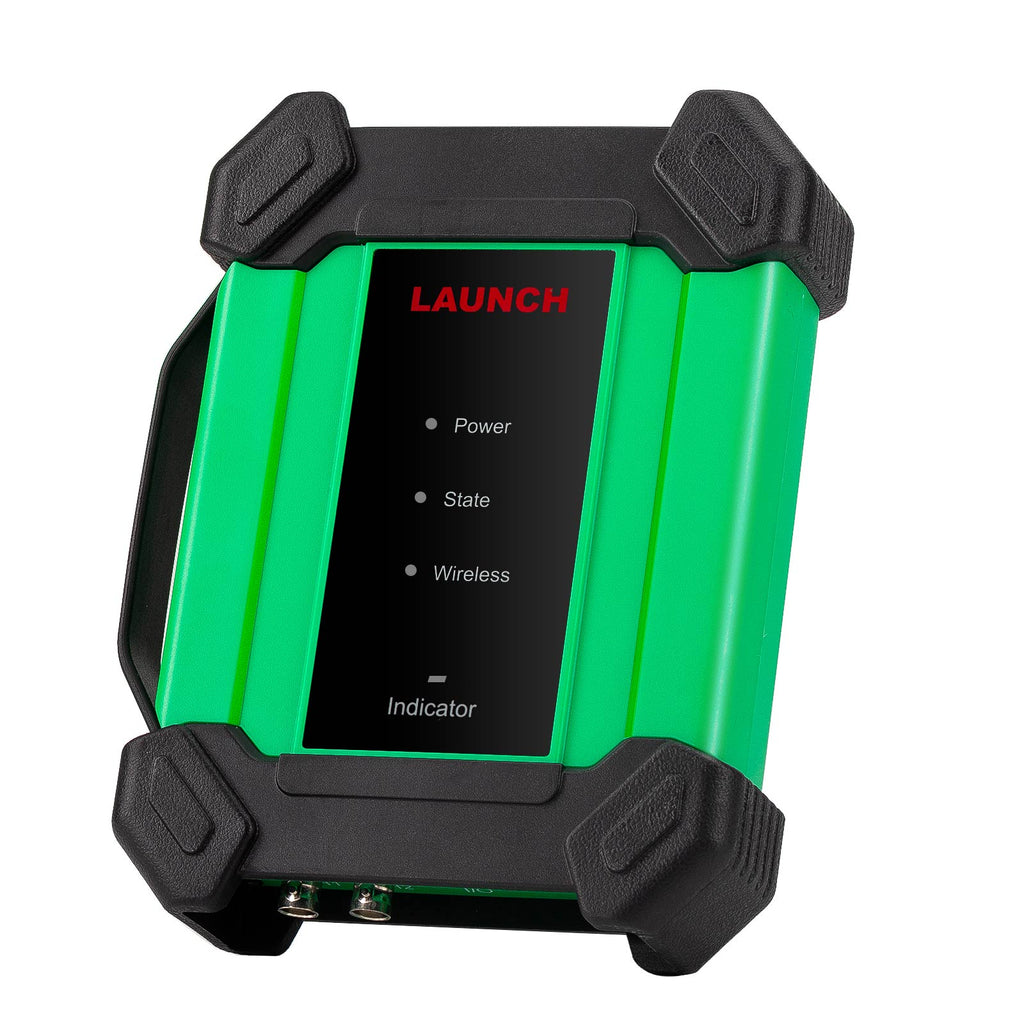

LAUNCH EM101N EV 2-Channel Scopebox Oscilloscope & Multimeter
LAUNCH EM101N EV Introduction:
The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.

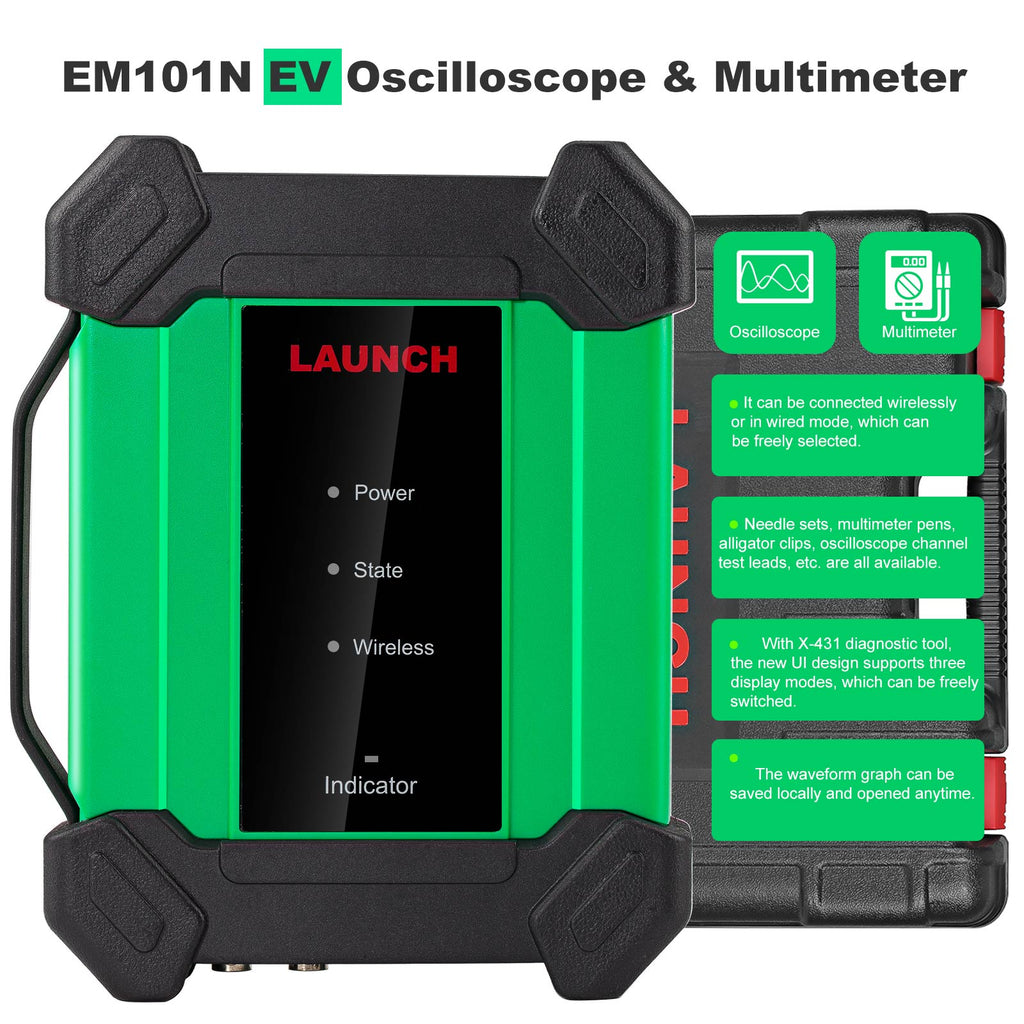

LAUNCH EM101N EV Main Features:
- 2-channel oscilloscope with multimeter function for EV vehicles.
- Brand-new diagnostic APP with user-friendly interface, convenient and easy use, which supports local saving and opening of waveforms.
- Supports both wired connection and wireless connection with supported X-431 diagnostic tools.
- The brand-new UI style design supports three display modes, which can be freely selected and switched at will.
- Rich accessories, pricker sets, multimeter pens, crocodile clips, oscilloscope channel test lines, etc.
- It is equipped with a 3.1 Ah battery and can also be used wirelessly.
LAUNCH EM101N EV Product Specifications:
Multimeter Parameters:
DC voltage - Automatic range, test range: ±600V;
AC voltage - Automatic range, test range: ±600V;
DC current - Automatic range, test range: ±10A (it is necessary to connect an external sensor for large range current);
AC current - Automatic range, test range: ±10A;
Average value measurement (it is necessary to connect an external sensor for large range current);
Resistance - Automatic range, test range: 0~6MΩ;
On and off - Tweet when less than 30Ω;
Diode - 0.5V—2.0V.
DC voltage - Automatic range, test range: ±600V;
AC voltage - Automatic range, test range: ±600V;
DC current - Automatic range, test range: ±10A (it is necessary to connect an external sensor for large range current);
AC current - Automatic range, test range: ±10A;
Average value measurement (it is necessary to connect an external sensor for large range current);
Resistance - Automatic range, test range: 0~6MΩ;
On and off - Tweet when less than 30Ω;
Diode - 0.5V—2.0V.
Oscilloscope Parameters:
Channel: Two analog channels;
Real-time sampling rate: (Max) 50MHz/s;
Time base range: 1us/div～10s/div, step by 1～2～5 times;
Sampling mode: Normal sampling, peak detection, average;
Storage depth: 1M;
Input coupling: DC, AC, grounded;
Input resistance: 1MΩ±2%, Parallel with 15pF±5pF;
Vertical sensitivity: 2mV/div～5V/div;
Vertical resolution: 8bits;
Maximum input voltage: 40V peak value（DC + AC peak value;
Probe attenuation factor: 1X, 10X, 100X（probe support required);
Trigger type: Edge trigger, pulse width trigger;
Trigger mode: Auto, Normal, Single;
Automatic measurement: Peak-to-peak value, Average value, Maximum value, Minimum value, Top value, Bottom value, Frequency, Period.

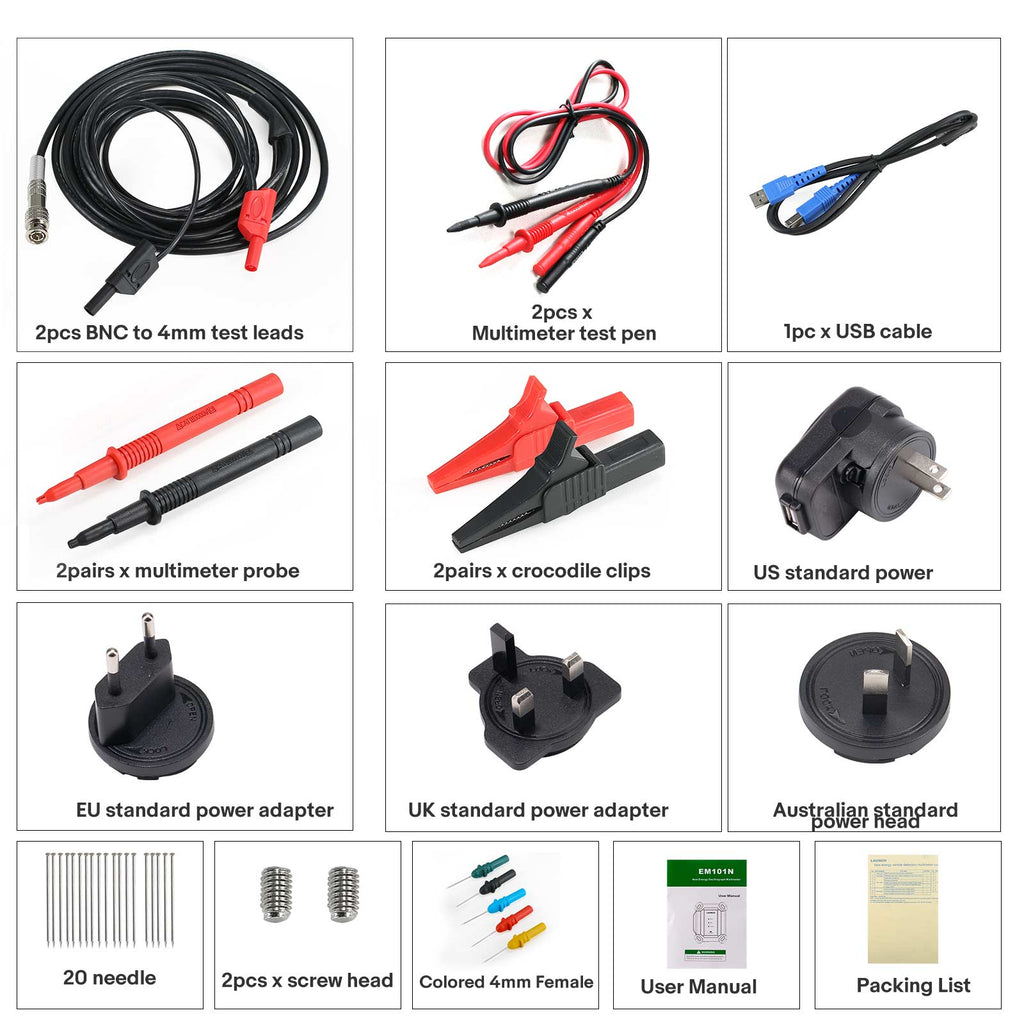

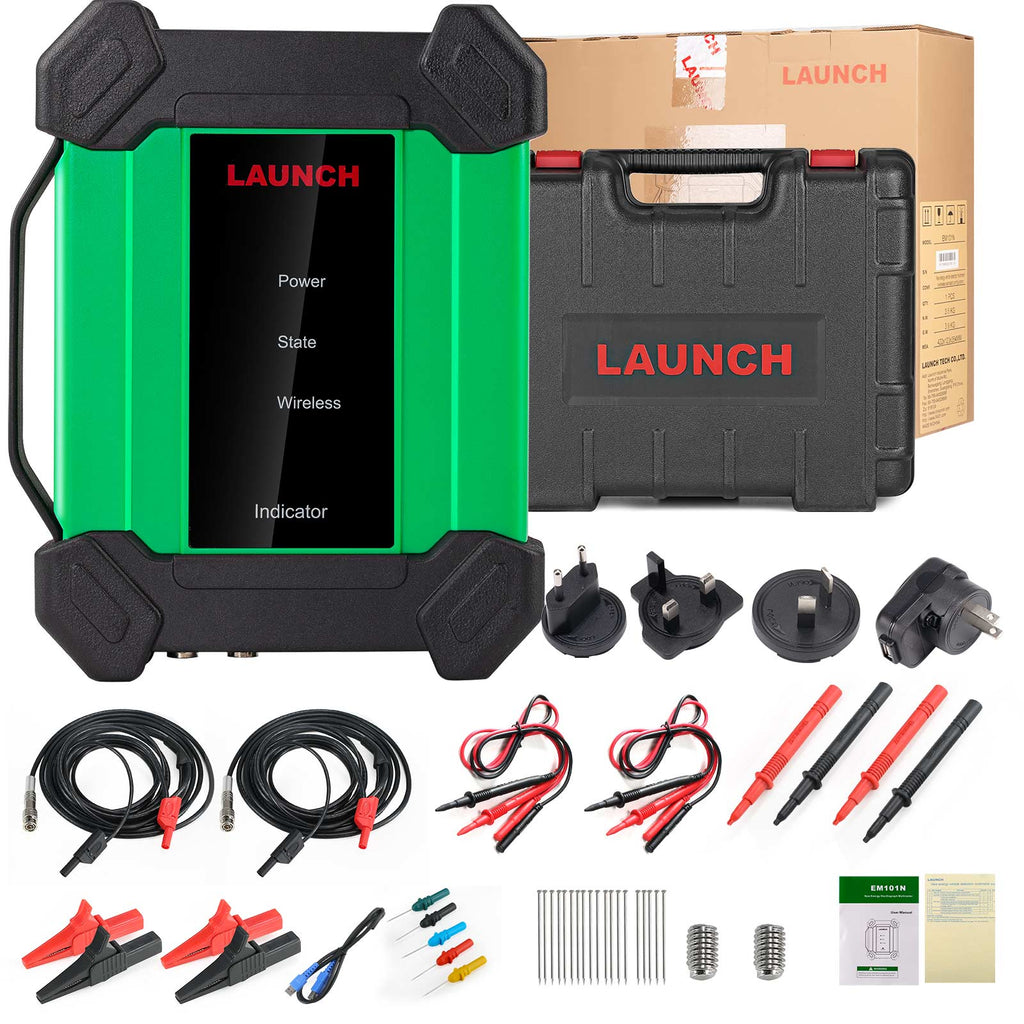

LAUNCH EM101N EV Package Includes:
1pc x EM101N main unit
1pc x BNC to 4mm test leads
1pc x Multimeter test pen(black+red)
1pc x Multimeter probes(black+red)
1pc x Crocodile clips
1pc x Black probe pins suite(5probes+20pins+2caps)
1pc x Type A-Type B USB cable
1pc x Power adapter
1pc x User manual
