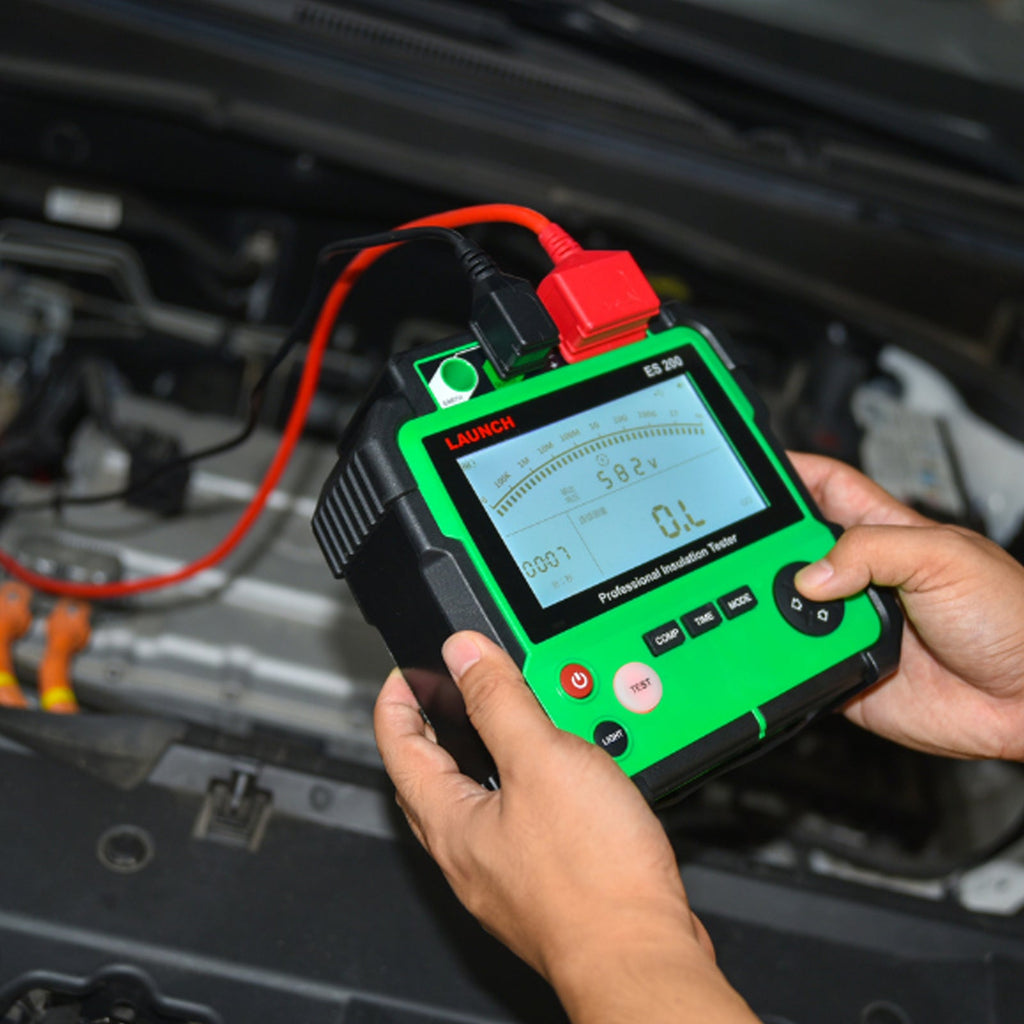

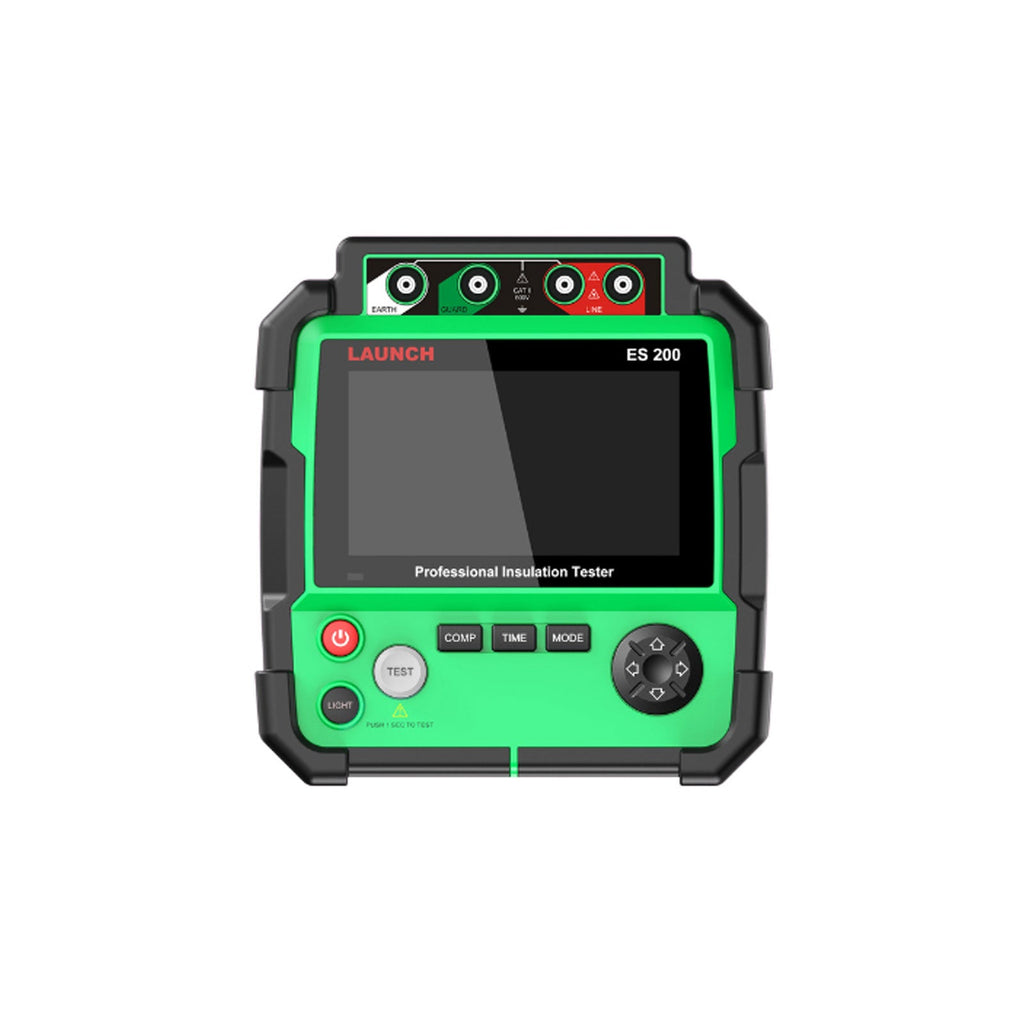

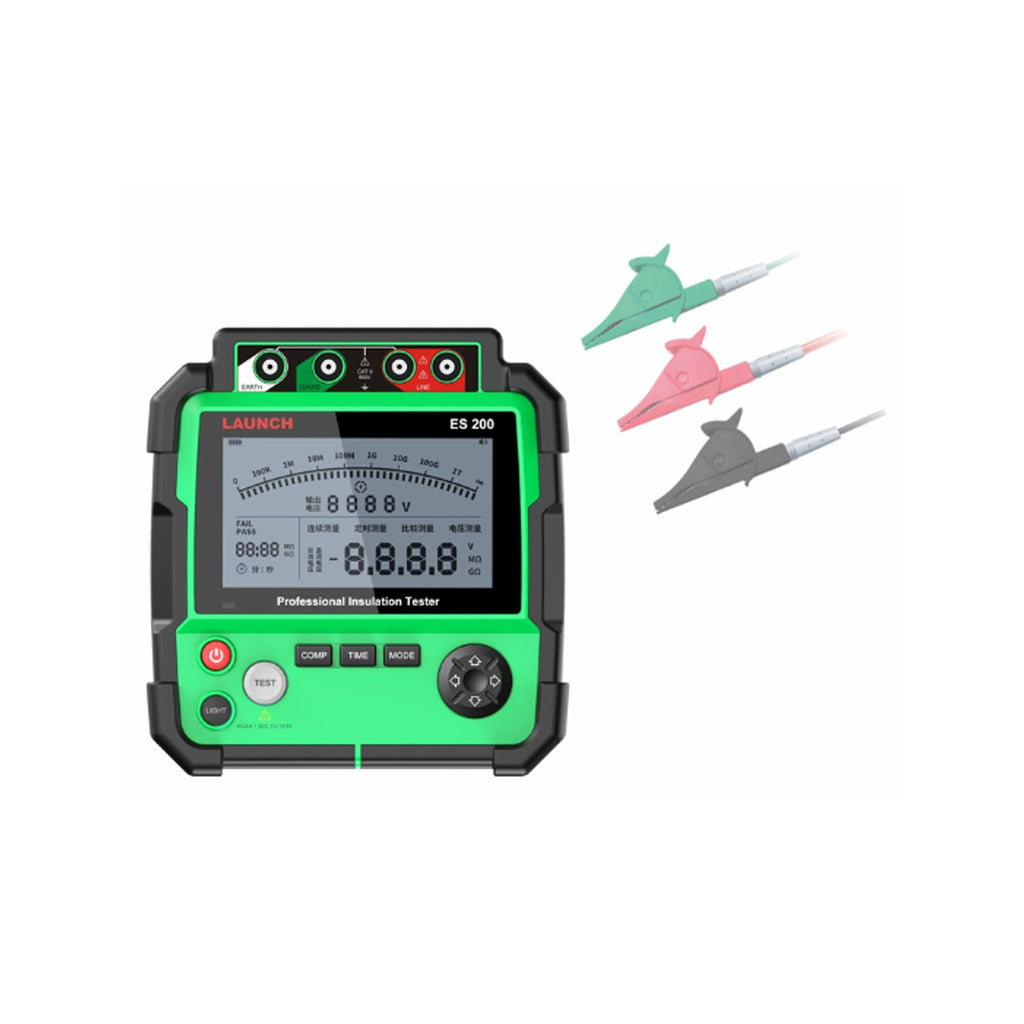

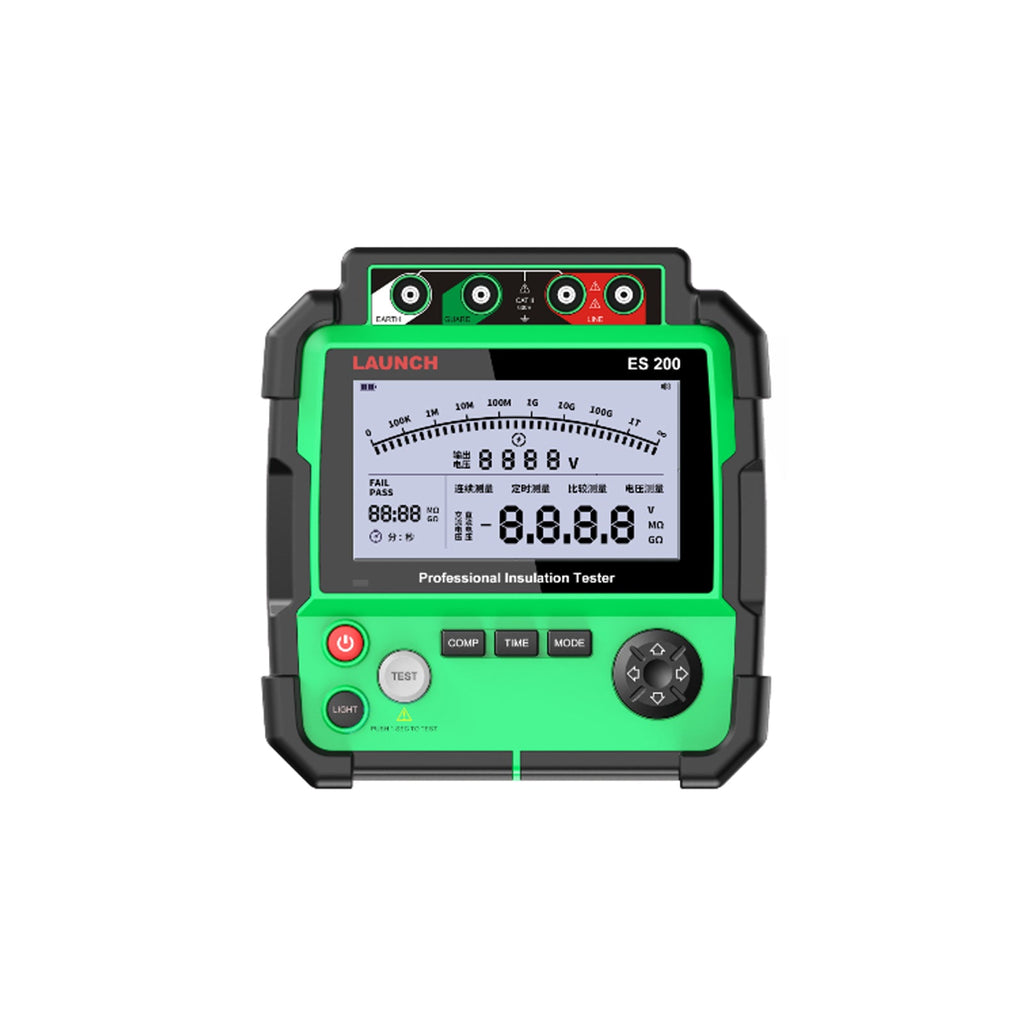

LAUNCH ES200 EV Insulation Resistance Tester – High Voltage 5000V, Multimeter & Oscilloscope for Electric Vehicle Diagnostics

VXDAS Official Store

2 sold in last 8 hours

243 customers are viewing this product

Description

Notice: This is a pre-order item (est. 50-day delivery) with built-in battery.

The LAUNCH ES200 EV Insulation Resistance Tester delivers precise insulation resistance measurements with high-voltage options (500V, 1000V, 2500V), ensuring safe and efficient diagnostics for EV high-voltage systems.

This versatile tool combines multimeter functions and dual-channel oscilloscope capabilities, streamlining maintenance with real-time waveform analysis.

Why Choose the LAUNCH ES200 EV Insulation Tester?

High-Voltage Testing Flexibility – Supports multiple test voltages (500V to 5000V) for accurate insulation resistance readings across EV components.
Dual-Functionality – Integrates a multimeter and oscilloscope, reducing the need for multiple devices during diagnostics.
User-Friendly APP – Save and analyze waveforms locally with the diagnostic APP, enhancing workflow efficiency.
Three Measurement Modes – Timing, comparison, and continuous modes adapt to diverse testing scenarios.

LAUNCH ES200 EV Insulation Resistance Tester – Product Overview

The ES200 is a professional-grade insulation resistance tester designed for electric vehicle (EV) high-voltage system maintenance. It detects insulation faults, measures voltage (AC/DC), and provides real-time waveform analysis for improved diagnostics. Compatible with most EVs, it ensures safety and performance compliance.

LAUNCH ES200 – Key Features

Insulation Resistance Testing – Measures resistance from 0.0MΩ to 1000GΩ across four voltage settings (500V/1000V/2500V/5000V) with ±3% accuracy.
Voltage Measurement – Tests DC (±30V–600V) and AC (30V–600V) with ±3% precision.
Dual-Channel Oscilloscope – Captures and displays waveforms for detailed system analysis.
Standard Resistance Calibration – Includes reference resistance for accuracy validation.
